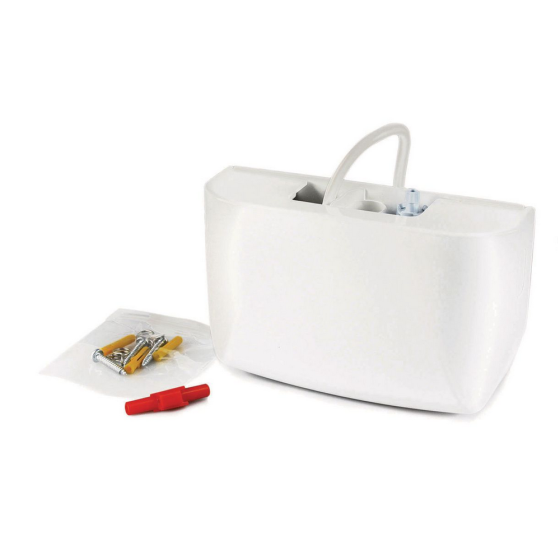

Designed to be fitted below the indoor unit, the Mini White offers an extremely easy to install mini pump for all wall and ceiling suspended indoor units. Snap-on snap-off cover allows for easy filter maintenance.
FEATURES & BENEFITS
• Surface mounts below evaporator, at either end • Crisp white color and slim profile complement any evaporator • Resilient mounting minimizes vibration & noise • Accepts standard 5/8" drain hose from any mini-split • Fully potted electronics (Potting is the process of epoxy filling a complete assembly for resistance to shock, vibration, moisture, chemical and promotes sound dampening) • No need to disturb evaporator to clean filter, reservoir clips out from front for easy removal and replacement • Includes anti-siphon device • Duty Cycle: Non-Continuous • Pump Length: 7.125'' • Pump Width: 2'' • Pump Height: 4.5'' • Capacity: 2.9 GPH @ 0’ Head / 1.2 GPH @33' Head • Max BTUs: 54,000 • Max Head in Feet: 33 • Max Temperature: 104° F • Max Suction Lift: N/A • Sound Level: 21dB(A) • Dry Contact Rating: 3A NC • Voltage: 100–250v • Amperes: .17 • Watts: 16 • Remote Reservoir: N • Plenum Rated: N • Cable Length: 39'' • Sound level and pump performance varies with voltage frequency.
