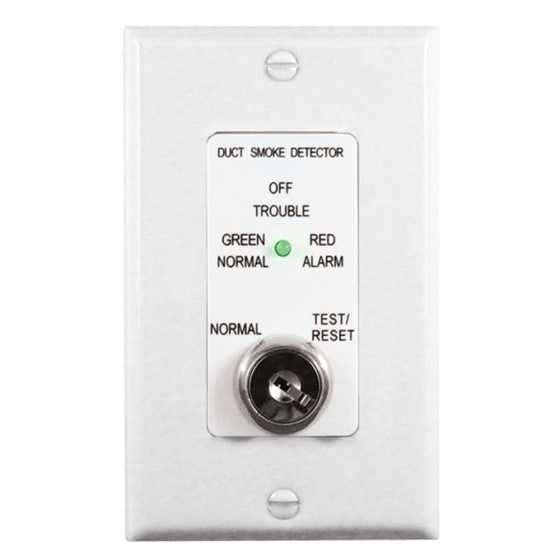

APC Remote Control Assembly with Single Gang Cover Plate (White)

Item

MSR-50RK/W

Skip to the beginning of the images gallery

FEATURES

The MSR-50R Series remote accessories are designed for use with Air Products and Controls duct smoke detectors to provide the range of functionality required by your local commercial application. The MSR-50RK provides a key-operated detector test and reset function.

The strobe and audible buzzer features are not ADA compliant, and not intended for life safety notification or evacuation purposes (public mode). These functions are for duct smoke detector status indication only (private mode).

• Key-operated detector Test and Reset functions (MSR-50RK model only)

• Single gang remote indicator/control with standard Decora style cover plates (white).

• Warranty 3 year

• Operating Element Key switch

SPECIFICATIONS

• Status Indicator – Alarm Red

• Status Indicator – Fault Off

• Operating Temperature (Min) 0°C

• Operating Temperature (Max) 49°C

• Operating Temperature 0 to 49°C

• Standards UL 268

• Weight 0.4lbs

• Color White

• Product Height (Wo/Base) 114.3mm

• Product Width 69.85mm

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	1.000000

Resources

MSR-50RK_W_Installation.pdf

MSR-50RK_W_TDS.pdf
