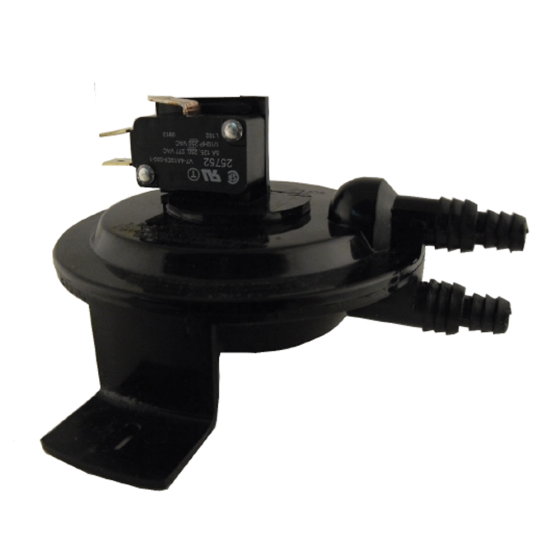

Supco® Vacuum Pressure Switch, Adjustable 1-4" W.C.
Item
RSS498013
APPLICATIONS
Adjustable air pressure sensing switch kits ideal for residential and light commercial furnace, electric air cleaner and humidifier applications.
FEATURES & BENEFITS
• Adjustable set points
• Operating temperature range: -40°F to 190°F
• Factory set to activate on pressure rise
• SPDT
• UL® & CSA® approved
• 2 Year warranty
• Amperage: 5A Non-inductive
• Pressure Range: 1.0" to 4.0"
• Replaces: RSS-498-13
• Pressure range (W.C.): 1.0" to 4.0"
CROSS REFERENCE
• Robertshaw® - 2374-498
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 1.000000 |
