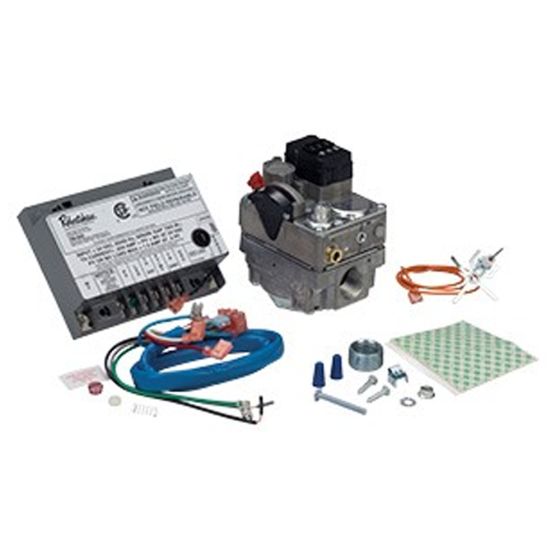

Robertshaw® Intermittent Pilot Ignition System Kit 1/2" x 3/4"
PRODUCT DETAILS
The Robertshaw® 712 Series Intermittent Pilot Ignition System Kit features flame rectification with solid-state logic and flame sensing to provide automatic sequencing that will ensure proper operation of an intermittent pilot ignition device. The 712 pilot ignition systems are available with one of four different gas valve types to fit a wide range of furnace applications. Caution: Do not use on LP gas applications.
FEATURES & BENEFITS
• Quick and easy installation.• Complete in-depth instructions and trouble shooting information.
• Used on natural gas systems only.
• Ignition Control: 780-845 (Lockout - 90 Seconds)
• Gas Valve: 720-070
• Connection Inlet Size: 1/2"
• Connection Outlet Size: 3/4"
• Capacity: 150,000 BTU
• Restart: 3 Try Lockout
• Pressure Regulation: Uni-Kit® Natural Gas
CROSS REFERENCE
• WHITE-RODGERS - 21D185
• GRAINGER - 4E397
• W.W. GRAINGER - 4E397
• UNI-LINE - 63013
• UNI-LINE - 63014
• UNKNOWN - 661616
• UNI-LINE - 700-002
• UNI-LINE - 700-007
• UNI-LINE - 700022
• UNI-LINE - 700-022
• UNI-LINE - 700027
• UNI-LINE - 700-027
• UNI-LINE - 710-002
• UNI-LINE - 710-007
• UNI-LINE - 711002
• UNI-LINE - 711007
• UNI-LINE - 712007
• UNI-LINE - 712-007
• GRAINGER - 9998-363
• W.W. GRAINGER - 9998-363
• JOHNSTONE SUPPLY - L36987
• JOHNSTONE SUPPLY - L36-987
• JOHNSTONE SUPPLY - L38185
• JOHNSTONE SUPPLY - L38-185
• JOHNSON CONTROLS - Q15GAA1
• JOHNSON CONTROLS - Q15GAA-1
• JOHNSON CONTROLS - VLV49A602R
• JOHNSON CONTROLS - VLV49A-602R
• JOHNSON CONTROLS - VLV49A604R
• JOHNSON CONTROLS - VLV49A-604R
• JOHNSON CONTROLS - VLV49A605R
• JOHNSON CONTROLS - VLV49A-605R
• JOHNSON CONTROLS - VLV49A606R
• JOHNSON CONTROLS - VLV49A-606R
• HONEYWELL - Y8610H4010
• HONEYWELL - Y86G1002
• HONEYWELL - Y86G1036
Specification | |
---|---|
Gas Connection Size | 1/2" x 3/4" |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 3.37 | Exterior Dimensions (D) (inches) | 8.500000 | Exterior Dimensions (W) (inches) | 6.500000 | Exterior Dimensions (H) (inches) | 5.500000 | Shipping Weight (lbs) | 10.000000 |
