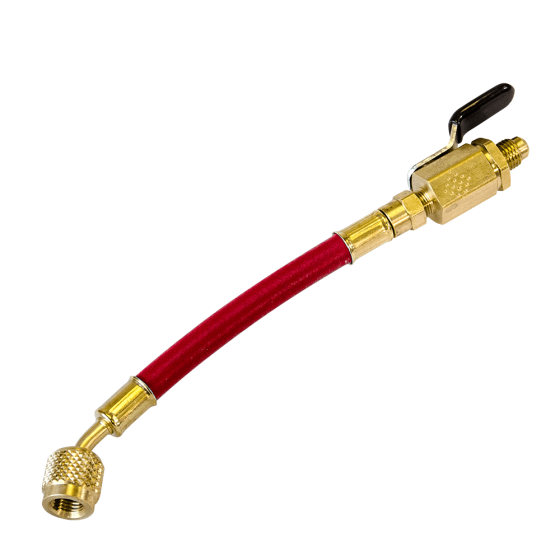

JustBetter® KOBRA® Whip-End Ball Valve Hose Adapter 800 psi, 1/4" x 1/4" x 6" (Red)
Item
CLV-6R
FEATURES
• CLV Series KOBRA® Gasket Seal Quarter-Turn Ball Valve 6" Whip End Only• 800 psi working; 4000 psi burst
• Meets non-venting requirements by trapping refrigerant with ball valve
• Opens to full flow
• Patent pending design of the fittings features a hood that locks the gasket into the fitting with a straight edge to straight edge force that eliminates the blowout of the gasket
• Barbed depressor locks into the gasket, exuding more outward force and pushing the gasket further into place
• Depressor is precisely machined for maximum flow and has a dimple that guides the valve core into place
• Common crimp grips the full circumference of the hose yielding maximum hold and uniform seal that prevents leaks
• Kevlar® Lined
• 5 to 1 safety factor (beats industry standard of 4 to 1)
• Rebuild kit 90514
• P511 replacement gasket
• Use P90514 replacement depressor
| Specification | |
|---|---|
| Length | 6" | Fitting Size | 1/4" x 1/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
