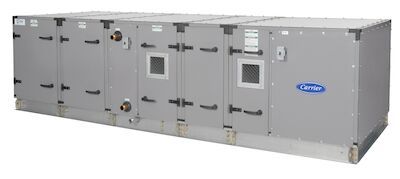

39M AERO® Semi-Custom Central Station Air Handler

Item
39M AHU
  • California Prop 65

Semi-Custom
Central Station Air Handler

1,500 to 60,500 Nominal Cfm

39MN - Indoor
39MW - Outdoor

Carrier’s Aero 39M air handlers provide advanced technology and custom features in a streamlined, easy to install package. Indoor and outdoor units are available to handle a wide variety of applications. Units can be equipped with HEPA filters, stainless steel sloped drain pans, Agion® antimicrobial coating and other options. The 39M unit’s double-wall casing allows panels to be easily cleaned without damaging the insulation inside. Available fan options include forward-curved, airfoil, and plenum fans for extra quiet operation. Factory-installed controls maintain airflow and ventilation requirements while helping to prevent coil freeze-up, excessive humidity and poor indoor air quality (IAQ). Carrier’s AHUBuilder® software makes selecting and optimizing the 39M air handler easy.

Performance Features

  • All units are shrink wrapped for complete protection while in transit
  • Maximum deflection ratio of L/240 at 8 in. wg.
  • Casing air leakage rate less than 1% at 8 in. wg. of unit nominal airflow
  • Doublewall panel construction, insulation is sealed between the inner and outer panels
  • Thermal break casing construction
  • Optional factory mounted controls
  • Chilled water, hot water, direct expansion (DX), electric and steam coils
  • Tubular indirect fired gas furnace option with a minimum of 10:1 turndown
  • Ultraviolet band C (UV-C) germicidal lamps
  • Multiple filtration from pleated MERV 8 to HEPA filters
  • Energy recovery ventilator (ERV) sections
  • Multiple fan options
  • Humidifiers for precise indoor climate conditioning
  • Internal and external face and bypass damper sections

Reliability Features

  • Optional 18 gauge exterior and/or interior skin
  • Standard insulated, fully drainable, sloped drain pans in galvanized or stainless steel

Maintenance Features

  • Optional prepainted and/or galvanized unit exterior
  • Optional aluminum diamond treadplate floors
  • All service may be performed through large, removable or hinged with lockable handle panels
  • Marine lights and viewports for interior component inspection

Installation Features

  • Units may be mounted in ceilings, closets, attics, etc.
  • Variable frequency drives are programmed and started up at the factory
  • Casing can be broken-down to individual panels and frame members
SizeNominal Airflow* (Cfm)Dimensions (in)**
Height***Width
03W15003733
06W30003746
07T35006039
08W40004054
09T45005742
10W50004067
11T55006645
12T60006648
12W60004767
14W70004772
16T80007551
17W85005079
18T90007854
21W105006079
22T110008460
25T125008961
25W125006086
30T150008972
30W1500060104
35T175009280
36W1800071109
37T1850010872
40W2000077109
42T2100010780
50W2500087117
51T2550010793.5
58T2900012093.5
61W30500102117
72W36000113120
85W42500113139
96W48000126139
110W55000126157

*Airflow is based upon 500ft/min face velocity.
**Airway length is dependent upon selected components. Check the product catalog for individual airway length of components.
***Unit height includes 6-in. base rail on an indoor unit. Other base rail height options are available.

Factory-Installed Options

  • Filter options from MERV 8 flat filters to face loaded HEPA filters
  • Water coils
  • Refrigerant coils
  • Steam coils
  • Electrical heat
  • Tubular indirect fired gas furnaces
  • Humidifiers
  • Sound attenuators
  • Energy recovery ventilator wheel (ERV) sections
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 1.0000
Exterior Dimensions (W) (inches) 1.0000
Exterior Dimensions (H) (inches) 1.0000
Shipping Weight (lbs) 1.0000
