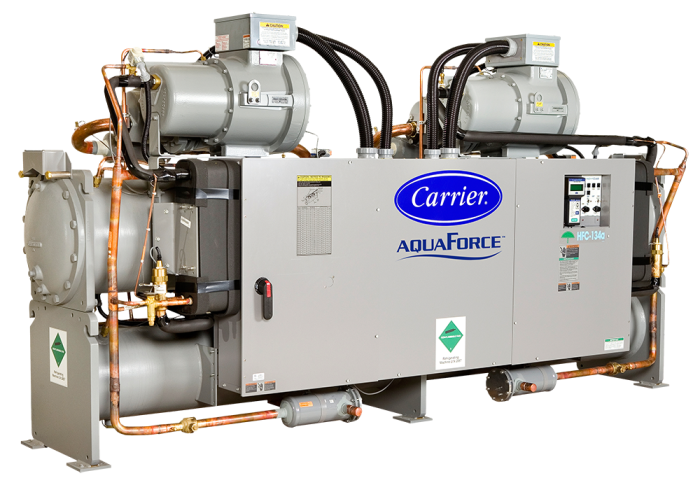

30HX AquaForce® High-Efficiency Indoor Liquid Screw Chiller

Item

30HXC/A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

High-Efficiency Indoor Liquid Screw Chiller

75 to 265 Nominal Tons

30HXA - Condenserless
30HXC - Water-Cooled

The 30HX units are high-efficiency, indoor water-cooled or condenserless chillers. The units have a quiet, low-vibration design featuring screw compressors. The 30HX chillers are compact enough to fit through a standard door, making them great replacement units.

Water cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org. Condenserless versions of these units and 50 Hz. units below 200 Tons are not certified under the AHRI certification program.

Performance Features

Chlorine-free HFC-134a refrigerant
Low energy consumption during part load and full load operation
208/230 v, 230 v, 460 v, 575 v operational voltages available
Wye-delta start is standard on 208/230 v and 230 v 50/60 Hz units (factory-installed option for all other units)
Leaving-fluid temperature directly controlled to within 0.5°F (0.3°C)
Entering-fluid temperature continuously monitored to detect flow or load changes
Compatible with Carrier Comfort Network® (CCN) communication link
Heat recovery capability up to 135°F (57.22°C)

Reliability Features

Low voltage control circuits
Short cycle protection
Dual chiller control
Temperature reset from return fluid
Chilled water flow switch
Electronic refrigerant gauges

Maintenance Features

Hermetic twin screw compressors
Mechanically cleanable condenser and cooler (30HXC)
Alarm contacts
Filter drier
Moisture indicating sight glass
Accessible service information including suction and discharge pressure and temperature using Navigator™ display module
Discharge and liquid line shutoff valves
ON/OFF control switch

Installation Features

Modular construction
Fits through standard doorway
Single point electrical connection
Easy connections for remote condensers (30HXA)
Heat mode controls as standard

Standard Warranty

One year from start-up or 18 months from shipment
Extended warranty

30HXA/C Unit Size	Capacity		Input Power (kW)	Cooler Flow		Cooler Pressure Drop		Condenser Flow		Condenser Pressure Drop
30HXA/C Unit Size	Tons	Output (kW)		gpm	L/s	Ft of Water	kPa	gpm	L/s	Ft of Water	kPa
076	75.4	265.2	53.7	181.0	11.4	14.5	43.2	226.2	14.3	8.9	26.6
086	83.0	292.3	60.4	199.3	12.6	17.2	51.4	249.1	15.7	10.7	31.8
096	94.0	330.5	67.0	225.5	14.2	17.0	50.7	281.9	17.8	10.9	32.7
106	104.3	366.8	75.3	250.4	15.8	15.4	46.0	313.0	19.7	13.3	39.6
116	113.5	399.3	83.2	272.3	17.2	13.3	39.8	340.4	21.5	17.0	50.6
126	122.9	432.1	92.2	294.9	18.6	15.4	45.9	368.6	23.3	19.6	58.5
136	136.5	479.9	97.0	327.5	20.7	14.6	43.7	409.4	25.8	18.5	55.1
146	145.6	513.2	105.1	350.2	22.1	16.5	49.3	437.8	27.6	20.9	62.4
161	156.6	550.6	111.6	375.7	23.7	13.7	40.9	469.7	29.6	21.3	63.6
171	165.92	585.3	118.3	398.0	25.1	15.2	45.4	497.6	31.4	17.2	51.4
186	177.1	623.1	126.7	425.1	26.8	13.9	41.5	531.4	33.5	19.5	58.1
206	211.6	744.0	146.4	507.7	32.0	14.7	43.9	634.7	40.0	20.9	62.4
246	248.6	874.1	172.4	596.5	37.6	16.2	48.3	745.7	47.0	21.9	65.2
261	257.2	904.6	180.4	617.2	38.9	17.2	51.4	771.5	48.7	23.3	69.5
271	267.4	940.3	189.5	641.7	40.5	18.5	55.1	802.2	50.6	25.1	74.7

30HXA/C Unit Size	Full Load Efficiency (kW/Ton)	IPLV† (kw/Ton)
076	0.712	0.512
086	0.728	.0523
096	0.714	0.513
106	0.722	0.520
116	0.733	0.530
126	0.750	0.541
136	0.711	0.527
146	0.720	0.534
161	0.713	0.521
171	0.713	0.539
186	0.715	0.561
206	0.692	0.511
246	0.693	0.525
261	0.702	0.525
271	0.709	0.527

LEGEND
IPLV = Integrated Part Load Value
†IPLV shown is the lower of Sequence A or Sequence B unloading.

NOTES
1. Rated (60Hz unit) in accordance with AHRI Standard 550/590 at standard rating conditions.
2. Standard rating conditions are as follows:

Cooler Conditions:
Leaving Water Temperature: 44°F (6.7°C)
Flow: 2.4gpm per ton (0.043 L/s per kW)

Condenser Conditions:
Entering Water Temperature: 85°F (29.4°C)
Flow: 3.0gpm per ton (0.054 L/s per kW)

Fouling Factor (Cooler):
0.00010 hr x sq ft x °F per Btuh (0.000018m² x K per W)

Fouling Factor (Condenser):
0.00025 hr x sq ft x °F per Btuh (0.000044m² x K per W)

3. IPLV is a single number part load efficiency value calculated from using the efficiency values at 100%, 75%, 50%, and 25% of load when the chiller is operating in AHRI conditions.
4. All data in the above table was generated in Packaged Chiller Builder version 3.47. Please refer to the most current version of the Packaged Chiller Builder for the most up-to-date data.
5. Contact Carrier for custom ratings.

Factory-Installed Options

Wye-delta start
Brine
Minus-one-pass cooler head
Plus-one-pass cooler head
Minimum load control
Suction service valves
EMM (Energy Management Module)

Field-Installed Options

Chilled water flow switch
Thermistor
Control power transformer
Remote enhanced display
Minimum load control
Chillervisor™
Outside temperature reset sensor
EMM (Energy management module)
BACnet translator
LONWorks translator

Field-Installed Accessories

Neoprene vibration isolators (field-installed accessory)
Control power transformer
Minimum load control
Sound reduction enclosure
Vibration isolation
Temperature reset sensor
Chillervisor™ System Manager III
Cooler head insulation
EMM (Energy Management Module)
Sesimic compliance option

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	1.000000
Exterior Dimensions (W) (inches)	1.000000
Exterior Dimensions (H) (inches)	1.000000
Shipping Weight (lbs)	1.000000

Warranty
Compressor Warranty	1 Year
Labor Warranty	1 Year
Parts Warranty	1 Year
