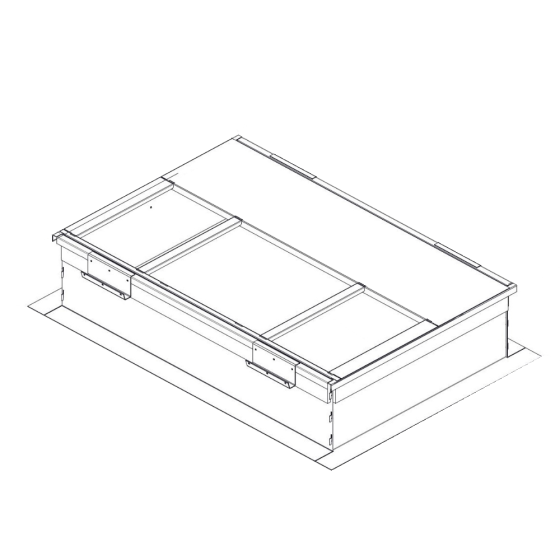

14" Roof Curb, Knockdown, No Pitch, Structurally Calculated

Item

CRBK-SPPSMHA-141H

SPECIFICATIONS

• Weight: 65lbs/29.48kg

• Assembled Length O.D.: 46.04

• Assembled Width O.D.: 30.61

• Composition: Galvanized Sheet Metal

• Insulated: Non-Insulated

• Perimeter: Full Perimeter

• Support Gauge: 16

• Hold Down Gauge: 14

• Deckpan: Included

• Deckpan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	65
Exterior Dimensions (D) (inches)	50.000000
Exterior Dimensions (W) (inches)	34.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	65.000000
