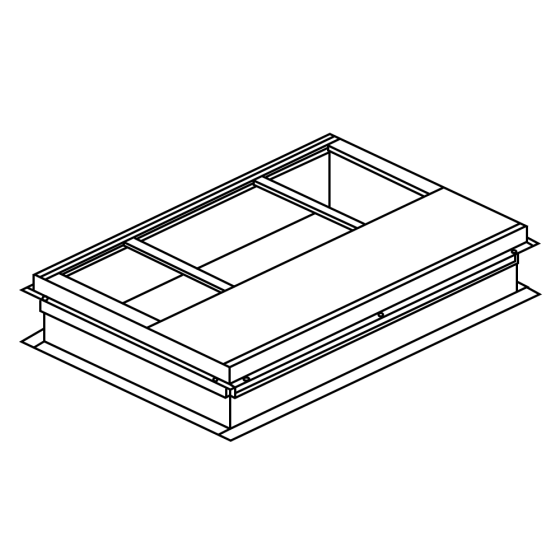

MicroMetl Roof Curb, 14" Tall, Welded, Adjustable Pitch
Item
CRBAP-SDSML-14
FEATURES
Adjustable pitch/height curb
This a multi-use curb, non insulated, partial perimeter, insulated deck pan if applicable. When using as an adjustable pitch curb... 14 inches minimum height, up to 1 in 12 inches in any direction. Warning: Do not use in adjustable pitch mode with a concentric kit... the curb insert interferes with the inside section. When using as an adjustable height curb... 14 inches minimum & 17.9375 inches maximum height,
SPECIFICATIONS
• Weight: 86lbs/39.01kg• Assembled Length O.D.: 46.04
• Assembled Width O.D.: 30.61
• Adjustable Pitch Height: 14 Inches Minimum
• Maximum Pitch: Up To 1 In 12 Inches In Any Direction
• Maximum Adjustable Height: Up To 1 In 12 Inches In Any Direction
• Composition: Galvanized Metal
• Insulated: Non Insulated
• Perimeter: Partial Perimeter
• Base Perimeter Gauge: 18
• Upper Perimeter Gauge: 18
• Support Gauge: 20
• Deck pan: Included
• Deck pan Gauge: 20
• Deck pan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2
• Gasket: 9430-0100, 9430-0200, 9430-2800
• Gasket Description: 0.25 X 1.5 Inch Multipurpose Medium Density Foam Gasket. 0.75 X 1.0 Inch Two
• Pound Polyester Urethane Sealing Gasket.
Specification | |
---|---|
Adjustable Pitch | Yes | Curb Height | 14" | Structurally Calculated | No | Structure | Knockdown |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 86 | Exterior Dimensions (D) (inches) | 46.000000 | Exterior Dimensions (W) (inches) | 31.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 86.000000 |
