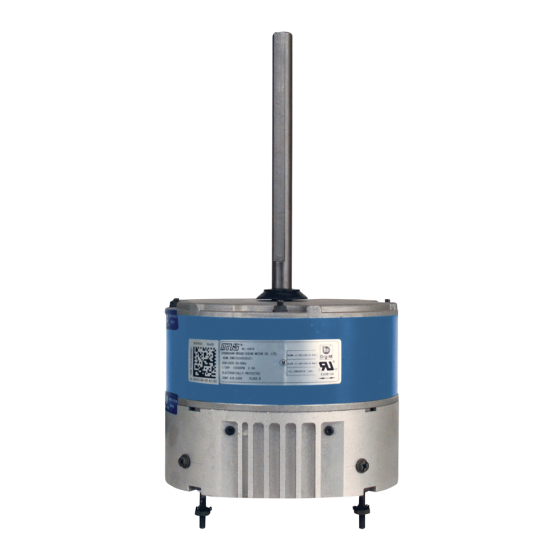

Mars® Condenser Fan Motor 1/8-1/3 HP, 825/1075 RPM, 208/230Vac, 1 Speed, 55°C (ECM)

Item
10874
  • California Prop 65

APPLICATIONS

Azure® is an electronically controlled motor (ECM) that replaces a multitude of applications. The Azure® condenser fan motors connect the same as a standard PSC condenser fan motor, BUT WITHOUT the capacitor. Just plug the motor into a 115V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor. Unlike other ECM motors, an outboard surge protector is included with the Azure® wiring harness. This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge.

FEATURES & BENEFITS

• Motor Type: ECM
• Enclosure: CAO
• H.P. (Max.): 1/3
• Voltage: 230
• Multi-Rated H.P.: 1/8 - 1/3
• Speeds: 1
• Hz: 50/60
• Rotation: CW/CCW
• RPM Range: 825/1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: UR
• Mount: Stud
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 0.5
• Thermal Protection: Electronical Protection
• Ambient Deg C: -32C-+55C
• NOTE: Shaft down only mounting. Remove the drain plugs
• Ins. Class: B
• Capacitor Included: No
• High efficiency ECM
• No capacitor required
• Water slinger on shaft

Specification
Ambient Temperature 55°C
Motor HP 1/8-1/3
Motor Type ECM
Number of Speeds 1
RPM 1075
Electrical
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 15
Exterior Dimensions (D) (inches) 14.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 15.000000
