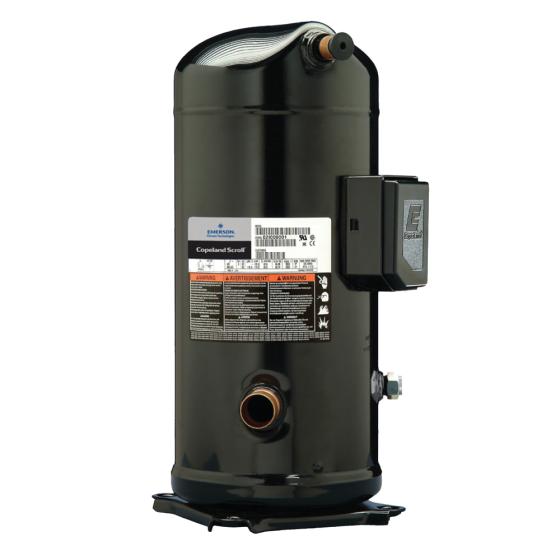

Copeland Hermetic Scroll Compressor R22, 94,000BTU, 460Vac, Three Phase
Item
ZR94KCE-TFD-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 94,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 23
• LRA: 95
• RLA: 16.4
• Hertz: 60
• Suction Line Size: 1-1/8"
• Suction Line Height: 17.49"
• Discharge Line Size: 7/8"
• Discharge Line Height: 3.69"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 16.4 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 91 to 110kBTU | Discharge Line Size | 7/8" | Oil | POE (Polyester) | BTU Output | 94000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 141 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 19.000000 | Exterior Dimensions (H) (inches) | 29.000000 | Shipping Weight (lbs) | 171.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
