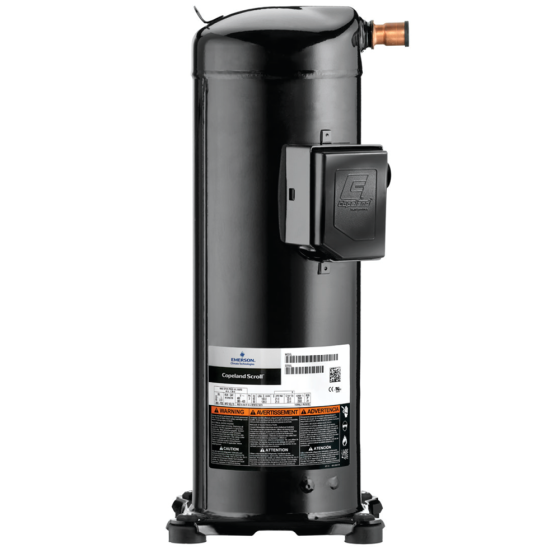

Copeland Hermetic Scroll Compressor R22, 72,000BTU, 208/230Vac, Three Phase
Item
ZR72KCE-TF5-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 72,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 29
• LRA: 156
• RLA: 20.7
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 16.13"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 20.7 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 71 to 80kBTU | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 72000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 84.15 | Exterior Dimensions (D) (inches) | 8.400000 | Exterior Dimensions (W) (inches) | 7.900000 | Exterior Dimensions (H) (inches) | 16.700000 | Shipping Weight (lbs) | 115.000000 |
| Warranty | |
|---|---|
| Country of Origin | Canada |
