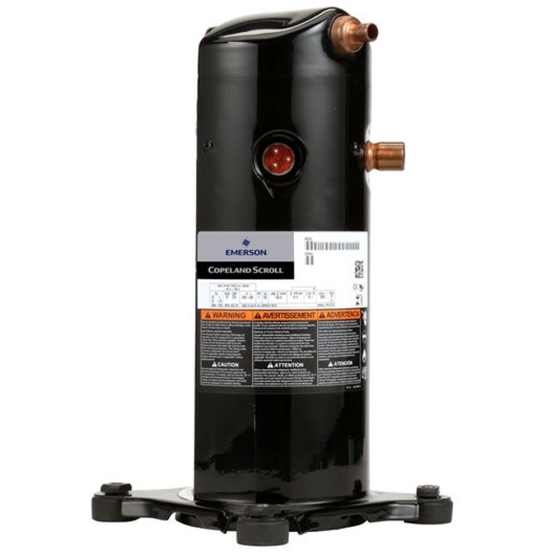

Copeland Hermetic Scroll Compressor R22, 44,000BTU, 208/230Vac, Single Phase
Item
ZR44K5E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 44,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 60/370µF
• MCC: 31.5
• LRA: 137
• RLA: 22.5
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.05"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.30"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 22.5 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 41 to 45kBTU | Suction Line Height | 11.1" | Discharge Line Height | 15.4" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 44000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 69.2 | Exterior Dimensions (D) (inches) | 7.700000 | Exterior Dimensions (W) (inches) | 7.300000 | Exterior Dimensions (H) (inches) | 15.900000 | Shipping Weight (lbs) | 100.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
