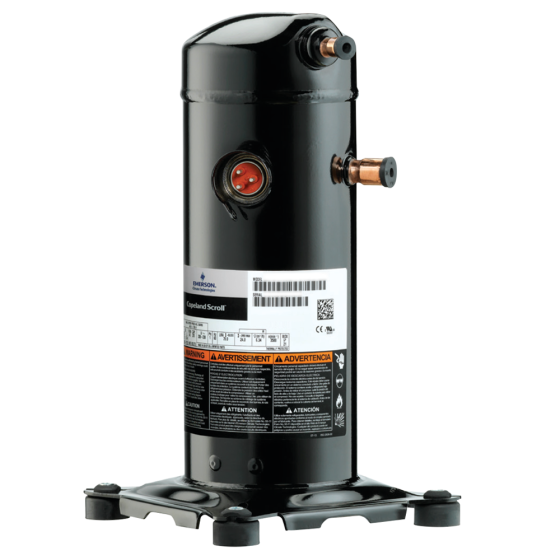

Copeland Hermetic Scroll Compressor R22, 32,000BTU, 460Vac, Three Phase
Item
ZR32K5E-TFD-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 32,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 9
• LRA: 38
• RLA: 6.4
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 9.97"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.13"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 6.4 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 31 to 35kBTU | Suction Line Height | 10.1" | Discharge Line Height | 14.2" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 32000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 54 | Exterior Dimensions (D) (inches) | 13.200000 | Exterior Dimensions (W) (inches) | 14.800000 | Exterior Dimensions (H) (inches) | 20.100000 | Shipping Weight (lbs) | 84.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
