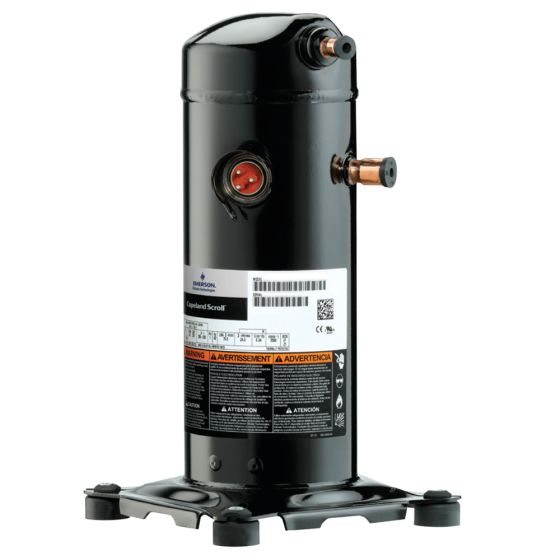

Copeland Hermetic Scroll Compressor R22, 21,000BTU, 208/230Vac, Single Phase

Item

ZR21K5E-PFV-830

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Compressor Type: Scroll
• BTU Rating: 21,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 35/370µF
• MCC: 16.8
• LRA: 56
• RLA: 12
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 9.97"
• Discharge Line Size: 1/2"
• Discharge Line Height: 14.13"

Specifications

Electrical
Hertz	60
Phase	1
RLA	12
Voltage	208/230

Specification
Refrigerant	R22
Compressor Type	Scroll
BTU Rating	21 to 25kBTU
Suction Line Height	10.1"
Discharge Line Height	14.2"
Discharge Line Size	1/2"
Oil	POE (Polyester)
BTU Output	21000

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	47.1
Exterior Dimensions (D) (inches)	6.800000
Exterior Dimensions (W) (inches)	8.300000
Exterior Dimensions (H) (inches)	15.200000
Shipping Weight (lbs)	78.000000

Warranty
Country of Origin	United States

Resources

ZR21K5E-PFV-830.pdf
