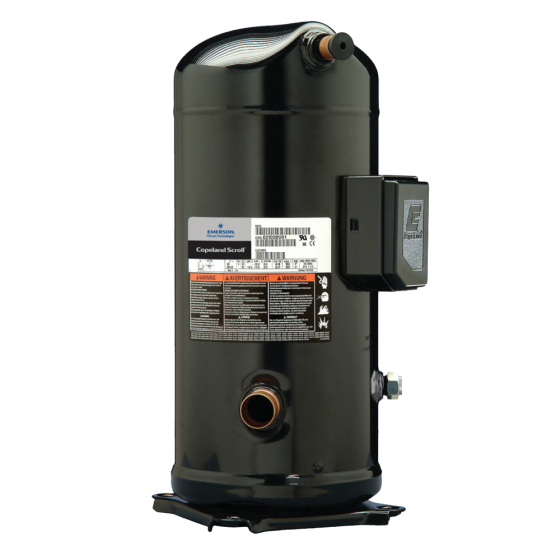

Copeland Hermetic Scroll Compressor R22, 108,000BTU, 460Vac, Three Phase
Item
ZR108KCE-TFD-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 108,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 24.2
• LRA: 114
• RLA: 17.3
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 4.81"
• Discharge Line Size: 7/8"
• Discharge Line Height: 19.73"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 17.3 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 91 to 110kBTU | Oil | POE (Polyester) | Suction Line Height | 4.81" | Discharge Line Height | 19.73" | Discharge Line Size | 7/8" | BTU Output | 108000 | Compressor Type | Scroll | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 154 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 18.500000 | Exterior Dimensions (H) (inches) | 27.500000 | Shipping Weight (lbs) | 184.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
