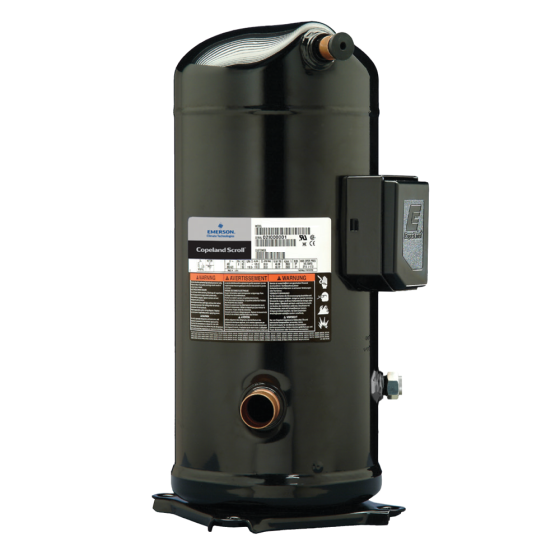

Copeland Hermetic Scroll Compressor R22, 108,000BTU, 208/230Vac, Three Phase
Item
ZR108KCE-TF5-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 108,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 47
• LRA: 225
• RLA: 33.6
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 4.81"
• Discharge Line Size: 7/8"
• Discharge Line Height: 19.73"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 33.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 91 to 110kBTU | Suction Line Height | 4.71" | Discharge Line Height | 19.73" | Discharge Line Size | 7/8" | Oil | POE (Polyester) | BTU Output | 108000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 150 | Exterior Dimensions (D) (inches) | 32.000000 | Exterior Dimensions (W) (inches) | 38.000000 | Exterior Dimensions (H) (inches) | 32.000000 | Shipping Weight (lbs) | 180.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
