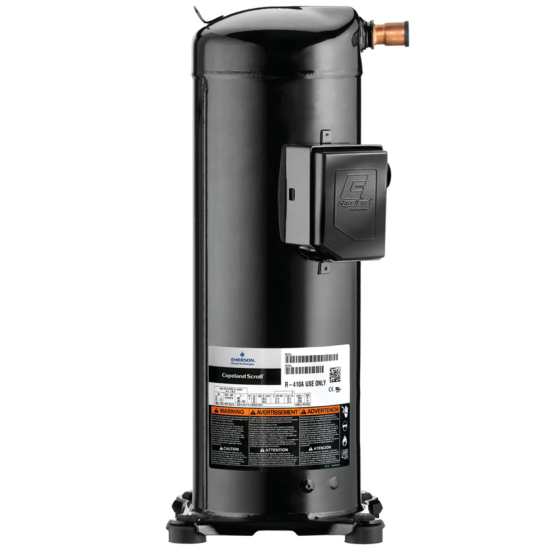

Copeland Hermetic Scroll Compressor R410A, 90,000BTU, 460Vac, Three Phase
Item
ZP91KCE-TFD-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 90,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 20
• LRA: 100
• RLA: 14.3
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.73"
• Discharge Line Size: 3/4"
• Discharge Line Height: 16.17"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 14.3 | Voltage | 460 |
| Specification | |
|---|---|
| BTU Rating | 81 to 90kBTU | Oil | POE (Polyester) | Suction Line Height | 11.73" | Discharge Line Height | 16.17" | Discharge Line Size | 1/2" | BTU Output | 91000 | Compressor Type | Scroll | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 93 | Exterior Dimensions (D) (inches) | 13.000000 | Exterior Dimensions (W) (inches) | 15.000000 | Exterior Dimensions (H) (inches) | 21.000000 | Shipping Weight (lbs) | 123.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
