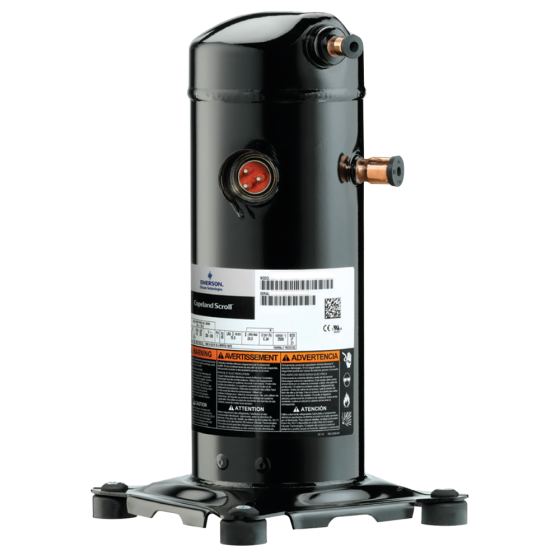

Copeland Hermetic Scroll Compressor R410A, 36,000BTU, 460Vac, Three Phase
Item
ZP36K5E-TFD-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 36,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 9.3
• LRA: 44
• RLA: 6.6
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.5"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.34"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 6.6 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 36 to 40kBTU | Suction Line Height | 11.50" | Discharge Line Height | 15.34" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 36000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 72 | Exterior Dimensions (D) (inches) | 13.000000 | Exterior Dimensions (W) (inches) | 14.000000 | Exterior Dimensions (H) (inches) | 16.900000 | Shipping Weight (lbs) | 102.000000 |
| Warranty | |
|---|---|
| Country of Origin | United States |
