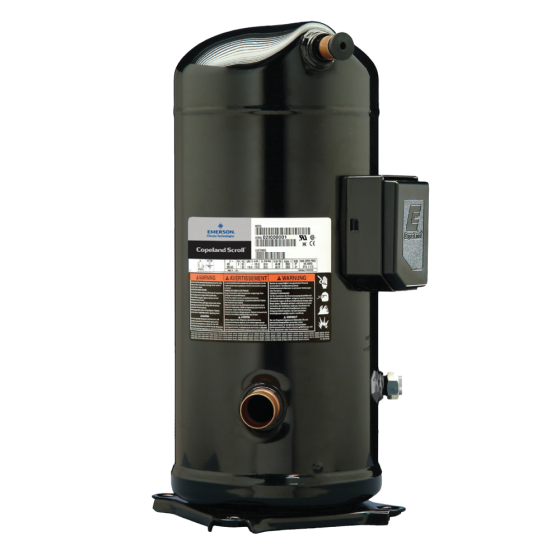

Copeland Hermetic Scroll Compressor R410A, 120,000BTU, 460Vac, Three Phase

Item
ZP120KCE-TFD-950
  • California Prop 65

FEATURES & BENEFITS

• Compressor Type: Scroll
• BTU Rating: 120,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 28
• LRA: 125
• RLA: 20
• Hertz: 60
• Suction Line Size: 1-3/8"
• Suction Line Height: 4.81"
• Discharge Line Size: 7/8"
• Discharge Line Height: 19.73"

Electrical
Hertz 60
Phase 3
RLA 20
Voltage 460
Specification
Refrigerant R-410A
Compressor Type Scroll
BTU Rating 111 to 130kBTU
Suction Line Height 4.81"
Discharge Line Height 19.73"
Discharge Line Size 7/8"
Oil POE (Polyester)
BTU Output 120000
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 135
Exterior Dimensions (D) (inches) 10.380000
Exterior Dimensions (W) (inches) 11.230000
Exterior Dimensions (H) (inches) 21.000000
Shipping Weight (lbs) 165.000000
Warranty
Country of Origin United States
