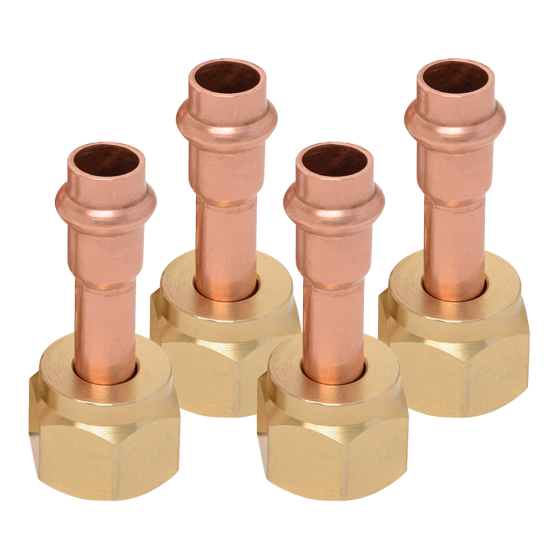

ZoomLock MAX 1/4" SAE Flare Press Fitting (Sold in Multiples of 4)

PLEASE NOTE

Parker ZoomLock MAX fittings are typically packaged and sold in bags to protect them from contamination and damage. Each bag contains a specific quantity of fittings, and the packaging is designed to keep the fittings clean and free from debris. The bags are sealed to prevent moisture and other contaminants from affecting the fittings.

FEATURES

Parker ZoomLock MAX refrigerant press fittings allow the contractor to successfully make leak-free connections with a press fitting system without the use of a brazing torch. ZoomLock MAX refrigerant press fittings reduce installation costs, is more repeatable than brazing, improves system cleanliness, and creates secure leak-free copper tube connections. ZoomLock MAX refrigerant press fittings have a 15-year warranty and no crimp gauge needed to provide a safe secure connection.

SPECIFICATIONS

• Outlet Connection Size: 1/4"
• Fitting Type: SAE Flare Adapter
• Inlet Connection Size: 1/4"
• Minimum Burst Pressure: 2100 psi
• Maximum Operating Temperature: 250 F
• Minimum Operating Temperature: -40 °F
• Maximum Operating Pressure: 700 psi
