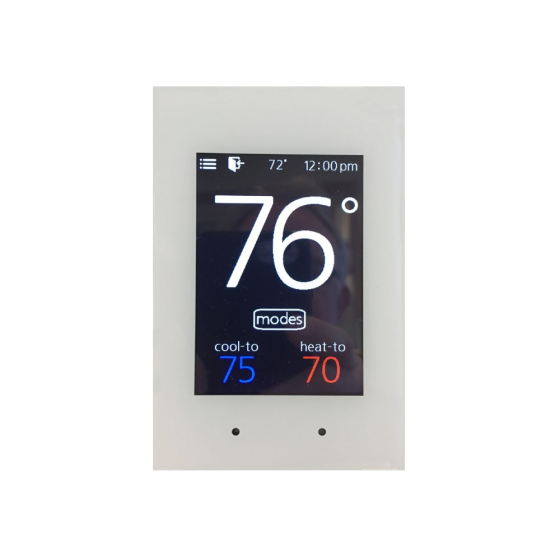

The EzTouchX is a microprocessor based, auto changeover, communicating color touch screen zone thermostat used with the GEN X, GEN V and GEN XV (for VRF-VAV) control systems. The EzTouchX can operate two position (spring open/power close), modulating medium pressure, heavy-duty dampers, and communicate with SAVs for VRF-VAV systems.
• Full Color Touch Screen Display
• High Tech look and operation
• Auto Changeover
• Adjustable Aux or Reheat operation
• Control Round or Rectangular Dampers
• Diagnostic tool for thermostat communication and operation
• Control fully modulating dampers
• Relative Humidity reporting
• Set point lock
• Display lock out
• Auto / Off / Cool only / Heat only
• Non-volatile memory retains stored set points
• Slave capability – up to 3 dampers per stat (Smart Air Values (SAV) dampers cannot be slaved)
• Temperature Calibration
• F or C Temperature operation
• Optional Duct Temperature monitoring (LAT sensor is not included)
SPECIFICATIONS
Electrical
• Input voltage: 24VAC
• Power consumption: 5VA maximum
• Output:
○ RO/RC Triacs – 24VAC @ .3 amp max
○ AUX Heat Relay – 15VA @ 24 VAC max
Temperature/Humidity Sensors
• Display Range: 55° to 95° F
• Humidity Sensor: (0-100% RH) +/-2% RH
Environmental
• Operating Temperature: 35° to 130° F (2° to 54° C)
