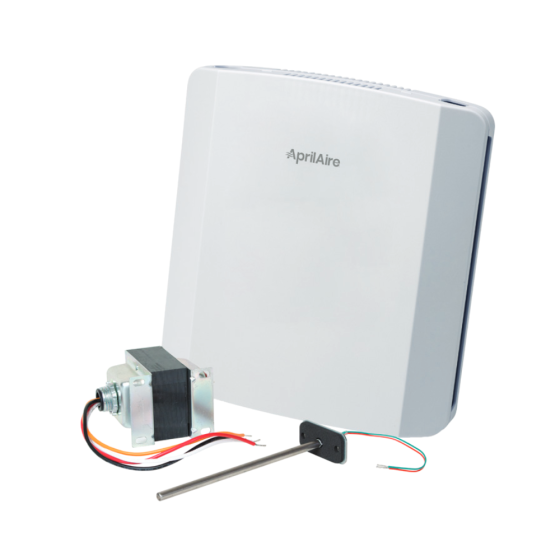

AprilAire® Zoned Comfort Control™ 3-Zone Panel Kit (2H/1C Heat Pump)

Item
6303K
  • California Prop 65

FEATURES

The Model 6303 Zone Panel is for single stage heat pump applications with a single stage of auxiliary heat. The zone panel is a heat call priority system with automatic heating/cooling changeover after 20 minutes of operation. If two opposing (heating/cooling) thermostat calls exist while the system is idle, the heating call will be satisfied first. A heat pump thermostat is required in each zone.

• 2 heating and 1 cooling stage
• Equipment protection
• Vacation mode – Zone 1 thermostat controls all zones
• Emergency Heat mode – Locks out the heat pump for heating

SPECIFICATIONS

• Voltage: 18-30VAC 50/60 Hz
• Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F
• Zone panel and thermostats (fused): 18VA at 158°F, 30VA at 90°F
• Zone panel consumption: 4VA max
• Note: Use 18 or 20 AWG solid (non-stranded) wire
• Temperature (operating): 32°F – 158°F
• Temperature (shipping): -40°F – 180°F
• Humidity: 5% – 90%, non-condensing
Safety Standards
California Prop 65 Yes
