Honeywell FocusPro 6000 5+2/5+1+1 Programmable Wireless Thermostat with RedLINK®, Equipment Module & Return Sensor 2H/2C (3H/2C HP)

Item
YTH6320R1001
  • California Prop 65

APPLICATIONS

Keep the home energy efficient with the FocusPRO® 6000 Programmable Wireless Thermostat. This thermostat is wireless to an equipment Interface module or to a RedLINK® zone panel when used with the wireless adaptor. Add a RedLINK® gateway for Access through the TCC app or website so you can monitor and control your heating and cooling systems whenever you're away from home.


FEATURES

The Honeywell Home Wireless FocusPRO® Digital programmable Thermostat with RedLINK® technology makes installation without running wires simple. The RedLINK® FocusPRO® thermostats can connect to your customer's Wi-Fi router with the addition of a RedLINK® Internet Gateway, allowing homeowners to remotely monitor and control their heating and cooling system from their connected smart devices, your customers can adjust their comfort levels via the Total Connect Comfort app. The FocusPRO® thermostat has an easy-to-read backlit digital screen paired with a simple push-button interface. The easy installation means more jobs, done quicker; which adds up to more profits for you.

• Wireless connectivity
• Wi-Fi access with TCC app when RedLINK® Gateway is used
• Relocate a thermostat or upgrade equipment without running new wires
• Works with the optional RedLINK® Internet Gateway, Portable Comfort Control and Wireless Outdoor Sensor
• Up to 3 heat, 2 cool heat pump (including dual fuel) or up to 2 heat, 2 cool conventional

SPECIFICATIONS

Wi-Fi: No
Wi-Fi Specifications: Internet Gateway THM6000R7001/U Provides Wi-Fi Capabilities
RedLINK: Yes
Color: Premier White®

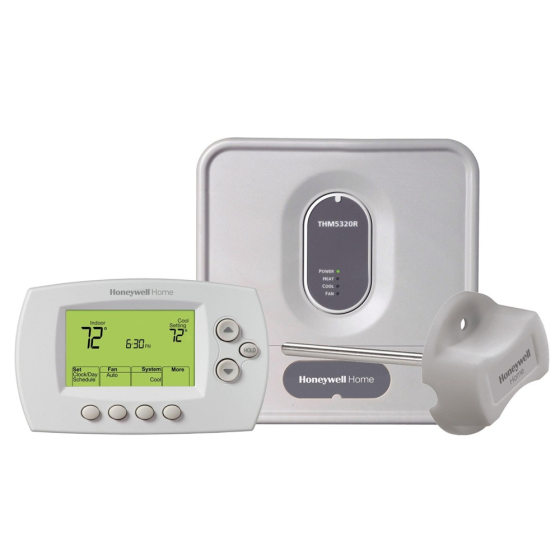

Includes: C7735A1000 Return Air Sensor, THM5320R1000 Equipment Interface Module, TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat
Utility Rewards: No
Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Program Modes: 5-1-1 Programmable, 5-2 Programmable
Control Functions: Heating, Cooling
Alerts and Reminders: Battery Replacement, High Indoor Temperature, Low Indoor Temperature
Display Language: English
Displayed Information: Indoor Temperature, Status Display
Energy Star Certified: No
Product Height: 3.56 in, 91 mm
Product Width: 5.81 in, 147 mm
Product Depth: 1.5 in, 38 mm
Warranty: 5 Years
Specification
Backlight Yes
Display Size 5 sq. in.
Millivolt Compatible No
Permanent Hold Yes
Program Options (Days) 5+2/5+1+1
Stages (Conventional) 2 Heat, 2 Cool
Stages (Heat Pump) 3 Heat, 2 Cool
Touchscreen No
WiFi Capability No
Temporary Hold Yes
Remote Sensing Capability No
Key Pad Lockout No
Humidification Controls No
Filter Indicator No
Battery Backup No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3.2
Exterior Dimensions (D) (inches) 14.750000
Exterior Dimensions (W) (inches) 9.630000
Exterior Dimensions (H) (inches) 5.250000
Shipping Weight (lbs) 7.000000
Warranty
Country of Origin Mexico
