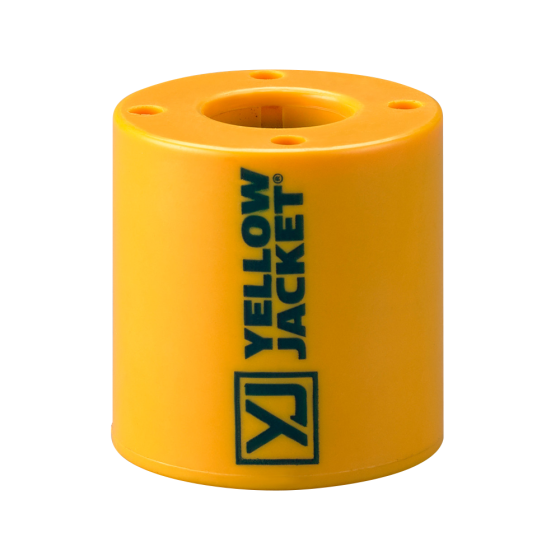

Yellow Jacket® Solenoid Valve Service Magnet

FEATURES

The YELLOW JACKET® Solenoid Valve Service Magnet is the quickest and easiest way to manually operate solenoid valves. It works by magnetically lifting the stem assembly and plunger to actuate the valve during service.

Test and Control
Use this solenoid service magnet to test, troubleshoot, or manually activate and control a direct connected or pilot operated 2-way solenoid, 3-way reclaim or 4-way reversing valve typically found in a reverse cycle air conditioner or heat pump.

Recovery and Evacuation
This magnet can also be used to hold a solenoid valve open during recovery and evacuation so the entire system can be accessed.

Other Uses

• Use in place of the power head on a hot water oil shutoff valve to eliminate the need to wait for the delay on open.

• Use it to temporarily replace faulty coil to open solenoid valve.

• Use it to turn the power on or replace the solenoid if it’s bad.

SPECIFICATIONS

• Opening: 0.75 in. (18 mm); fits most common manufactured valves including reversing valves.

• Diameter: 1.5 in.

• Length: 1.6 in.
