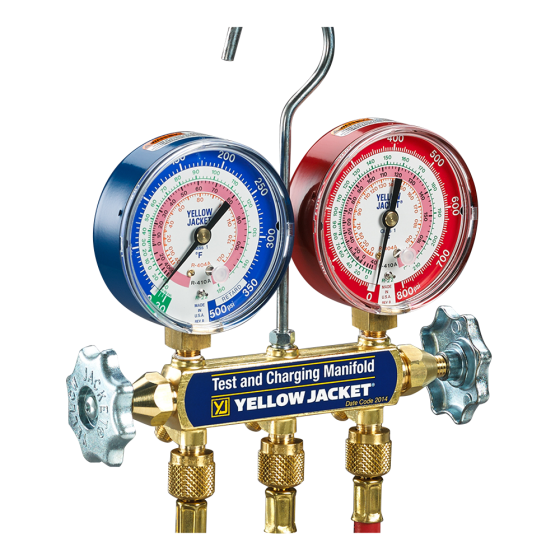

Yellow Jacket® Series 41 Brass Manifold with 3-1/8" Gauges (°F) & PLUS II™ Charging Hoses with Ball Valves 1/4" x 1/4" x 60" (R22, R404a, R410a)

Item
42201
  • California Prop 65

FEATURES

For decades, the YELLOW JACKET® “Series 41” Test and Charging Manifold has been the standard of the industry for both ease-of-use and durability. This field proven manifold has now been combined with larger, easier to read 3-1/8” color-coded gauges in rugged steel cases with polycarbonate crystals.

  • • Measure three refrigerants with one manifold: R-22,R-404A & R-410A
  • • Large 3-1/8” gauges feature steel cases with polycarbonate crystal:
  • • Color-Coded scales
  • • Larger dials are bold and easy to read
  • • Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems.
  • • Proven sliding double “O”-ring pistons reduce wear.
  • • Long life nylon seats
  • • Forged brass body for durability
  • • Full porting maximizes capacity and flow.
  • • Full-size metal valve handles for easy operation.
  • • Includes color-coded, 60” PLUS II™ hoses with standard ¼” flare fittings.
  • • Hose assemblies UL recognized for 4000 PSI (275 BAR) burst and 800 PSI (55 BAR) working pressure. SA9737

  • Specification
    A2L Compatible No
    Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 7
    Exterior Dimensions (D) (inches) 12.000000
    Exterior Dimensions (W) (inches) 12.000000
    Exterior Dimensions (H) (inches) 4.000000
    Shipping Weight (lbs) 7.000000
