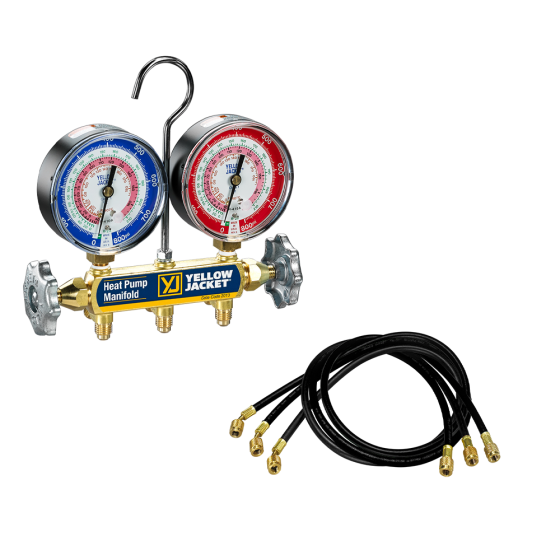

Yellow Jacket® 2-Valve Brass Heat Pump Manifold Kit with 3-1/8" Gauges (°F) Plus II™ Charging Hoses 1/4" x 1/4" x 60" (R22, R407c, R410a)
Item
42044
FEATURES
• Large 3-1/8″ gauges feature steel cases with polycarbonate crystal• High- and low-side gauges read up to 800 psi
• Color-coded scales – larger dials are bold and easy to read
• Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
• Proven sliding double “O”-ring pistons reduce wear
• Long life nylon seats
• Forged brass body for durability
• Full porting maximizes capacity and flow
• Full-size metal valve handles for easy operation
• Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
• Includes 3 60" black PLUS II™ charging hoses
• Made in USA
Specification | |
---|---|
A2L Compatible | No |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 12.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 10.000000 |
