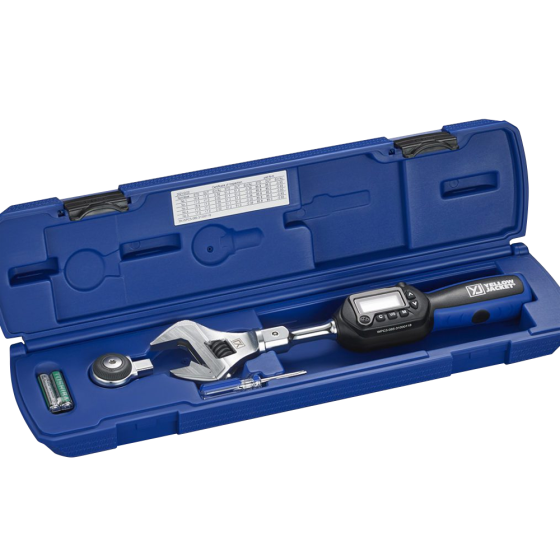

Yellow Jacket® Deluxe Digital Adjustable Torque Wrench with 3/8" Drive Ratchet Head

Item
60624
  • California Prop 65

FEATURES

The YELLOW JACKET® Digital Adjustable Torque Wrench P/N 60624 and 60648 captures and displays torque measurement in real time mode, providing users with unprecedented levels of control and accuracy.

For convenience, the torque wrench has nine common preset torque values, which display on the digital screen as the nut is tightened. For added assurance, indicator lights increase as the torque value is approached.

The adjustable wrench head means you can leave your other wrenches at home, and the protective carrying case keeps it safe as you carry it from job site to job site.

The Deluxe Digital Adjustable Torque Wrench includes the 60632 3/8″ Drive Ratchet Head.

  • • Interchangeable heads
  • • Integrated notch on wrench head to ensure tight fit on flare nut
  • • Digital torque value readout
  • • +/- 2% accuracy
  • • CW and CCW operation
  • • Peak hold and track mode selectable
  • • Buzzer and LED indicator for the nine pre-set target torques
  • • Four user selectable units of measure (ft. lb., in. lb., N-m, kg-cm) • 50 data memory for recall and joint torque auditing
  • • Auto sleep (after about five minutes idle)
  • • Water contact indicator
  • • Two AAA batteries included


  • SPECIFICATIONS

  • • Guaranteed Accuracy Range: 12.5 - 62.7 ft. lb. (17 - 85 N-m)
  • • 150 - 752 in. lb. (173 - 867 kg-cm)
  • • Accuracy: CW: ±2%; CCW: ±3%
  • • Data Memory Size: 50
  • • Pre-Sets: 9
  • • LED Indicators: 6 (1 red, 5 green)
  • • Operation Mode: Peak hold/track
  • • Unit Selection: ft. lb., in. lb., N-m, kg-cm
  • • Gear Teeth: 52
  • • Head Open Size: .2 - 1.18 inches (5 - 30 mm)
  • • Battery Type: Two AAA (non-rechargeable)
  • • Operating Temperature: 14°F ~ 140°F (-10°C ~ 60°C)
  • • Storage Temperature: 4°F ~ 158°F (-20°C ~ 70°C)
  • • Humidity: Up to 90% non-condensing
  • • Drop Test: 1 m
  • • Vibration Test: 10 g

  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 5
    Exterior Dimensions (D) (inches) 4.000000
    Exterior Dimensions (W) (inches) 14.000000
    Exterior Dimensions (H) (inches) 3.000000
    Shipping Weight (lbs) 5.000000
