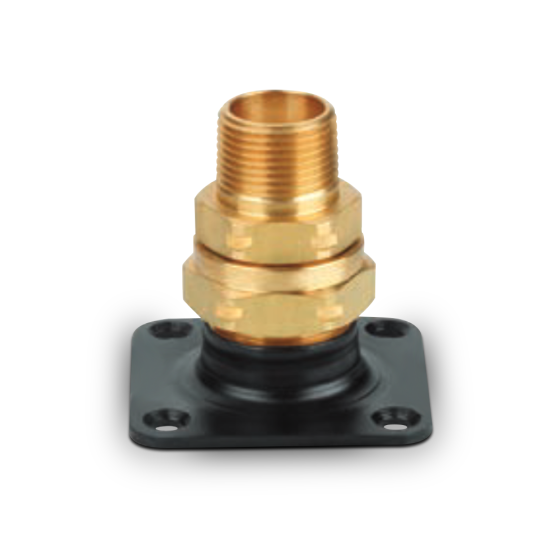

XR3 Square Termination Flange 3/4" NPT
Item
XR3TRM-11-12
APPLICATIONS
• Termination Fittings create a fixed point “stub-out” on a wall or floor surface.FEATURES & BENEFITS
• Fitting adapter, bushings and nut – Brass.• Square Flange – Steel with zinc coating or cast bronze.
| Specification | |
|---|---|
| Fitting Size | 3/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.71 | Exterior Dimensions (D) (inches) | 2.625000 | Exterior Dimensions (W) (inches) | 2.625000 | Exterior Dimensions (H) (inches) | 2.700000 | Shipping Weight (lbs) | 2.000000 |
