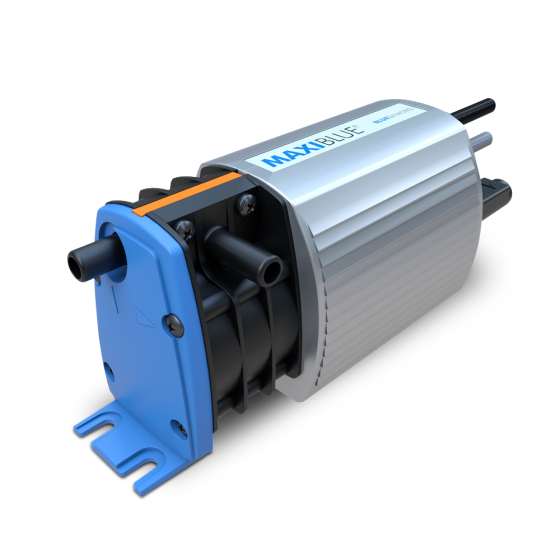

BLUEDIAMOND® MAXIBLUE® Condensate Pump 3.7GPH, 18-48k BTU, 208/230Vac

Item
X87-721
  • California Prop 65

APPLICATIONS

Designed for high humidity environments and with high performance, the MaxiBlue® is ideally suited for mid-range air conditioning systems. Its exceptional reliability is backed by a multi-year warranty and with class leading performance/suction lift, the MaxiBlue ® is ideal for installations in environments that are both demanding and expensive to access for maintenance.

BLUEDIAMOND ® technology can deal with the variable outputs of condensate without the need for additional sensors or overly complex performance settings.

Plug in and wireless connections to review pump history or run times before premature failures are not needed due to proven inherently reliable RD technology.

FEATURES & BENEFITS

• 21 dba
• Maximum Flow: 3.7 Gallons per Hour
• Maximum Head: 23 Feet
• Maximum Lift: 16.5 Feet
• The MAXIBLUE ® can be mounted in any orientation up to 16.5FT away from the A.C unit.
• Electrical rating: 208/230Vac, 50/60Hz
• Inlet/Outlet size: Ø0.24”

Electrical
Voltage 208/230
Safety Standards
California Prop 65 Yes
Specification
Gallons Per Hour 3.7
Weights and Dimensions
Operating Weight (lbs) 1.5
Exterior Dimensions (D) (inches) 6.200000
Exterior Dimensions (W) (inches) 2.300000
Exterior Dimensions (H) (inches) 2.700000
Shipping Weight (lbs) 2.000000
Warranty
Country of Origin United Kingdom
