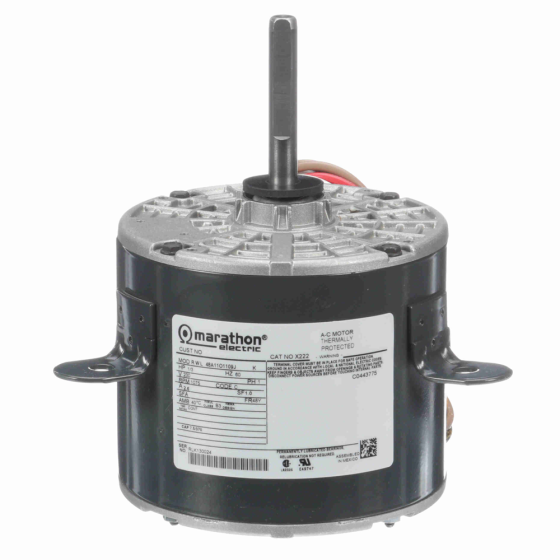

Mars® Direct Drive Blower Motor 1/3 HP, 1075 RPM, 208/230Vac, 2.6A, 7.5µF/370Vac, 2 Speed, 40°C (PSC)
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 2
• Voltage: 208/230Vac
• Amperage: 2.6
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
Specification |
Ambient Temperature |
40 °C |
Bearing Type |
Ball |
Motor Frame |
48 |
Motor HP |
1/3 |
Motor Type |
PSC |
Mounting Type |
3 Arm |
Number of Speeds |
2 |
RPM |
1075 |
Electrical |
Amps |
2.6 |
FLA |
2.6 |
Hertz |
60 |
Voltage |
208/230 |
Safety Standards |
California Prop 65 |
Yes |
Weights and Dimensions |
Operating Weight (lbs) |
20 |
Exterior Dimensions (D) (inches) |
14.000000 |
Exterior Dimensions (W) (inches) |
10.000000 |
Exterior Dimensions (H) (inches) |
10.000000 |
Shipping Weight (lbs) |
20.000000 |
