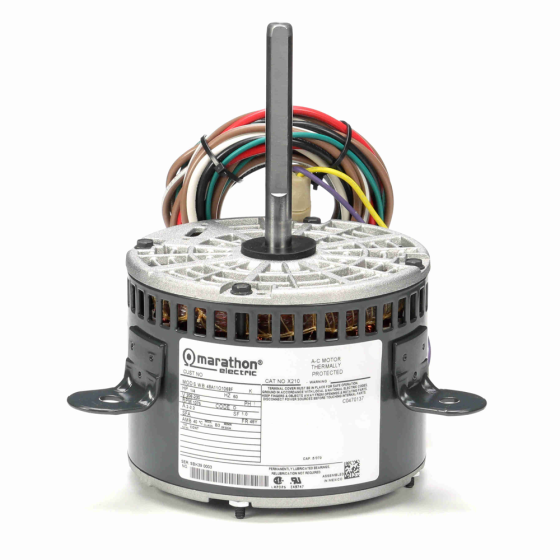

Mars® Direct Drive Blower Motor 1/4 HP, 1075 RPM, 208/230Vac, 2.2A, 5µF/370Vac, 2 Speed, 40°C (PSC)

Item

X210

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 2
• Voltage: 208/230Vac
• Amperage: 2.2
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty

Specifications

Specification
Ambient Temperature	40 °C
Bearing Type	Ball
Motor Frame	48
Motor HP	1/4
Motor Type	PSC
Mounting Type	3 Arm
Number of Speeds	2
RPM	1075

Electrical
Amps	2.2
FLA	2.2
Hertz	60
Voltage	208/230

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	20
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	10.000000
Shipping Weight (lbs)	20.000000
