Wired Remote Control 7 day Programmable

Item
KSACN0701AAA
  • California Prop 65

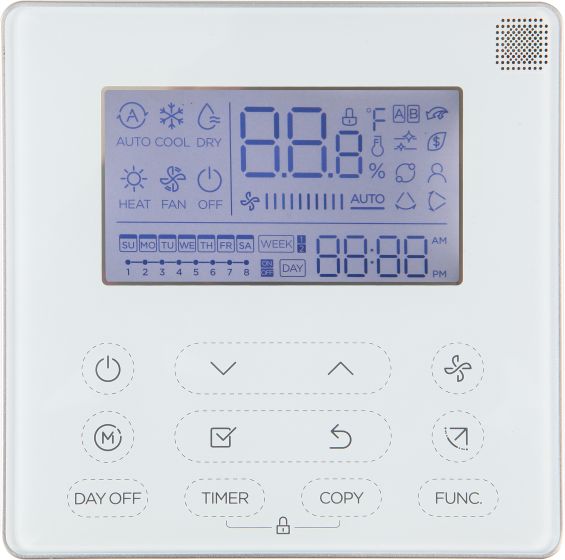

KSACN0701AAA Wired Remote Control 7 Day programmable

Wired Remote Controller
7 Day Programmable
High Wall Ductless Systems

Compatibility
High Walls and Console size 12. Refer to the compatibility charts for specific model numbers.

Features





• LCD Display
• °F/°C Convertible
• Backlight display
• Follow Me default, temperature sensing on the controller
• 4-wire quick connect
• Room temperature display
• Troubleshooting error code display
• Infrared IR receiver built-in
• Clock
• 12 HR format (am/pm)
Functions
• Weekly Schedule 7 day programmable
• Mode: Auto-Cool-Dry-Heat-Fan
• Operation Mode Locking
– CH Heat Pump
– CC Cooling Only
– HH Heating Only
– NA No Auto Mode
• Fan Speed: Auto/Low/Med/High speed
• Set temperature range limit
• Airflow direction Horizontal and Vertical (on some models)
• Temperature Setting
• Child Lock

Parts included
o Wired Remote Controller
o Installation and owner’s manual
o Screws M4X20
o Wall Plugs
o Plastic Screw Bars
o Battery
o Connection Cable 19 ft (6m)
o *Adapter Board (ONLY necessary for High Walls 40MAQ/619P*B/DHMPHA)
o *Display Board (ONLY necessary for High Walls 40MAQ/619P*B/DHMPHA)



Accessories, Sold Separately
o Additional extension cable 19 ft (6m) available through Replacement Components. Part Number: 17401204000769



Compatibility
High Walls and Console size 12. Refer to the compatibility charts for specific model numbers.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 1.000000
Exterior Dimensions (W) (inches) 4.800000
Exterior Dimensions (H) (inches) 4.700000
Shipping Weight (lbs) 1.000000
