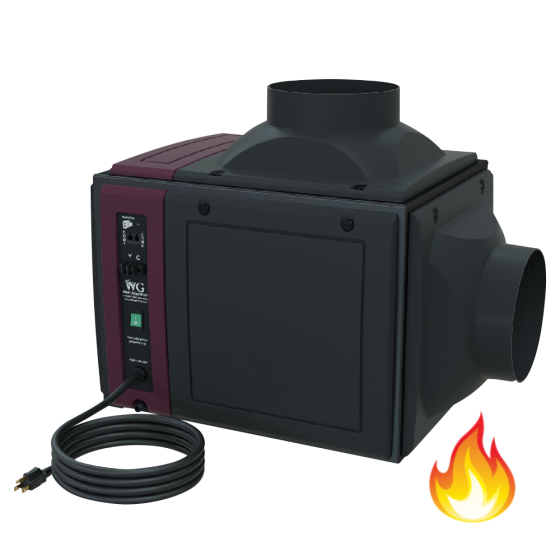

Wine Guardian® Sentinel Series DS200 Ducted Split Wine Cellar Cooling Evaporator with Heater, 15,785BTUH, 115Vac, Single Phase, 60Hz (All Wine Temperatures Bundle)

FEATURES

The DS200 split wine cooling ductable fan-coil is recommended for large residential and commercial applications. Contractor installation is required. Max capacity of 14,900 BTU/h (3.81 Kilowatts).

ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

Performance
• Net Cooling Capacity Total/Sensible
@40°F (4°C) condenser inlet air: 17118/11173 BTUH
@60°F (15°C) condenser inlet air: 17425/11173 BTUH
@70°F (21°C) condenser inlet air: 16195/10968 BTUH
@80°F (27°C) condenser inlet air: 15785/10455 BTUH
@100°F (32°C) condenser inlet air: 14145/9738 BTUH
@115°F (46°C) condenser inlet air: 12608/8815 BTUH

Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH

Fan-coil Section
• Fan Motor Size: 180 Rated Watts
• Rated Air Flow (free blow): 759 CFM
• Rated Air Flow @ Max allow pressure loss: 728 @ 0.35"w.c. / CFM

Electrical Requirements
• Power: 208-230Volts/1 phase/60Hz
• Current Draw - Cooling mode: 0.8 Amps

Cabinet
• Fan coil construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 69
• Dimensions (inches):
Width: 23.81
Depth: 25.04
Height: 19.65
Condensate Drain: 0.5 inches

• Agency Approval(s): ETLc
