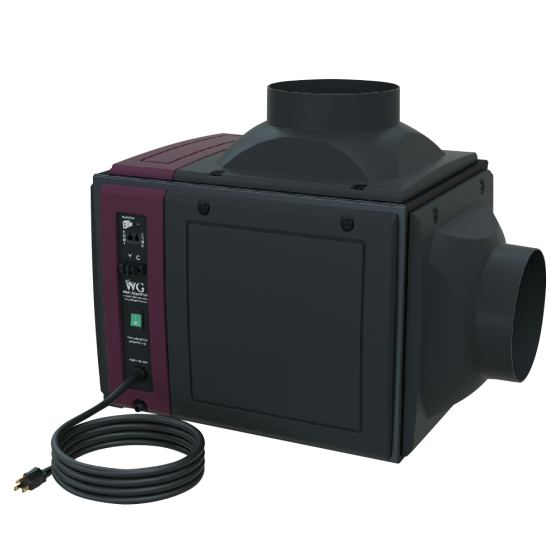

Wine Guardian® Sentinel Series DS200 Ducted Split Wine Cellar Cooling Evaporator, 15,785BTUH, 115Vac, Single Phase, 60Hz
Item
99H0362-20
FEATURES
The DS200 split wine cooling ductable fan-coil is recommended for large residential and commercial applications. Contractor installation is required. Max capacity of 14,900 BTU/h (3.81 Kilowatts).
EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted split system features a multi-panel design with captive quarter-turn fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.
DURABLE DESIGN
The panels and duct collars are constructed of the highest UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.
EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.
SPECIFICATIONS
Performance• Net Cooling Capacity Total/Sensible
@40°F (4°C) condenser inlet air: 17118/11173 BTUH
@60°F (15°C) condenser inlet air: 17425/11173 BTUH
@70°F (21°C) condenser inlet air: 16195/10968 BTUH
@80°F (27°C) condenser inlet air: 15785/10455 BTUH
@100°F (32°C) condenser inlet air: 14145/9738 BTUH
@115°F (46°C) condenser inlet air: 12608/8815 BTUH
Controls
• Type: Room mounted non-programmable combination thermostat humidistat
• Temperature Accuracy/RH% Accuracy: +/- 1 Deg F +/- 10% RH
Fan-coil Section
• Fan Motor Size: 180 Rated Watts
• Rated Air Flow (free blow): 759 CFM
• Rated Air Flow @ Max allow pressure loss: 728 @ 0.35"w.c. / CFM
Electrical Requirements
• Power: 208-230Volts/1 phase/60Hz
• Current Draw - Cooling mode: 0.8 Amps
Cabinet
• Fan coil construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 69
• Dimensions (inches):
Width: 23.81
Depth: 25.04
Height: 19.65
Condensate Drain: 0.5 inches
• Agency Approval(s): ETLc
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 69 | Exterior Dimensions (D) (inches) | 23.800000 | Exterior Dimensions (W) (inches) | 25.000000 | Exterior Dimensions (H) (inches) | 19.700000 | Shipping Weight (lbs) | 69.000000 |
| Specification | |
|---|---|
| Maximum Capacity (BTU/H) | 15,785 | Minimum Capacity (BTU/H) | 8,000 | Model | DS200 Evaporator | Defrost Sensor | No | High Ambient Protection | No | Low Ambient Protection | No | Serving Temperature | No | Water Cooled | No |
