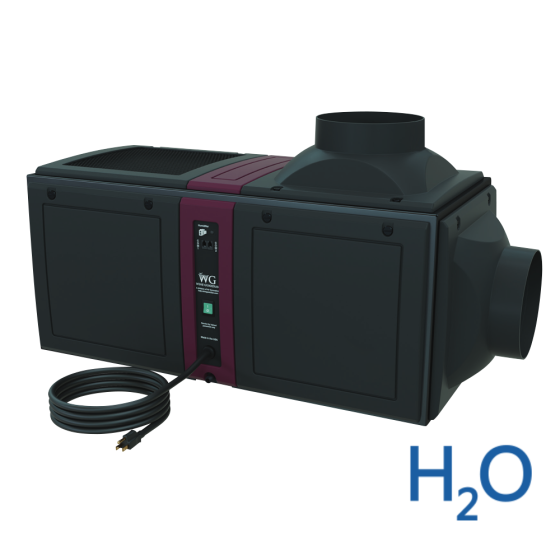

Wine Guardian® Sentinel Series D200WC Water-Cooled Ducted Wine Cellar Cooling Unit, 15,680BTUH, 208/230Vac, Single Phase, 60Hz

FEATURES

The water-cooled D200WC is our largest factory-configured system that contains a water-cooled condensing coil and water-regulating valve.

This wine room cooling unit is made to utilize water from sources such as a cooling tower, a lake, or a geothermal source, so long as the water is from a year-round source. Warm condenser air connections are not required, which makes the water-cooled wine cellar cooling option a perfect solution when warm condenser air venting is not possible.

WATER-COOLED
Includes a factory-configured integral water-cooled condensing coil and water-regulating valve. This wine cellar cooling system is ideal for geothermal, cooling tower and lake water applications. The unit does not require warm condenser air connections, making it an excellent solution when warm-condenser-air venting is not possible.

VERSATILE
The water-cooled systems offer flexible installation. They accept inlet water temperatures as cold as 45°F (7°C) and as warm as 85°F (29°C). The units also contains high-static pressure fans for extended length ductwork.

BOLD
A sleek and modern look to compliment any wine cellar design.

EFFICIENT
The ducted split system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.

STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.

ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation. The system also contains easy access water connection points.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 208(230)/1/60

Performance
• Net Cooling Capacity Total/Sensible 208 (230)
@60 Deg F condenser inlet air (BTUH): 17570/12430 (17680/12790)
@70 Deg F condenser inlet air (BTUH): 16580/11650 (16720/12000)
@80 Deg F condenser inlet air (BTUH): 15350/11100 (15680/11780)
@90 Deg F condenser inlet air (BTUH): 14000/10580 (15000/10870)

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section 208 (230)
• Fan Motor Size (Watts): 160 (180)
• Rated Air Flow (free blow) (CFM): 760 (810)
• Rated Air Flow @ pressure loss (CFM): 710 @0.35" w.c. (745 @0.35" w.c.)

Water-cooled Condenser Section
• Water usage at 20 Deg F rise (GPM): 2.5
• Pressure drop (PSI): 1.2
• Pipe connection size (in/out) O.D. (in.): 0.63

Electrical Requirements 208 (230)
• Current Draw - Cooling mode (Amps): 15.6 (14.1)

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 206
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID) (in.): .50
• Minimum Ductwork Size (in.): 12
• Agency approval (ETLc): UL 1995 / CSA C22.2
