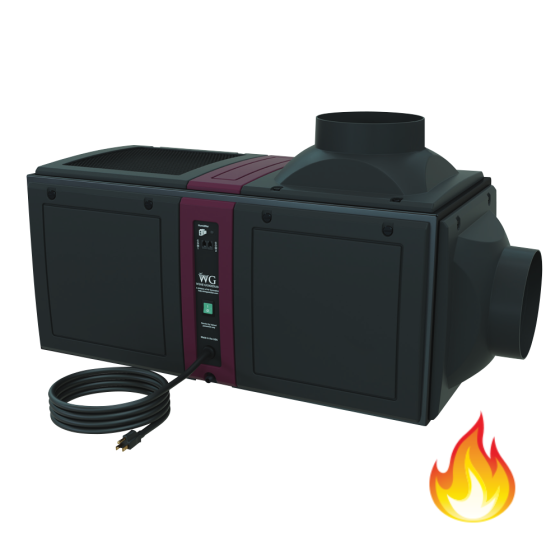

Wine Guardian® Sentinel Series D200 Ducted Wine Cellar Cooling Unit with Heater, 15,680BTUH, 208/230Vac, Single Phase, 60Hz (Ultimate Bundle)

FEATURES

The D200 is a ducted wine room cooling unit for large residential and commercial applications. The D200 is fully ductable and self-contained. The wine cellar cooling calculator can help determine if this unit is suitable for your wine room. Contractor installation is recommended. The maximum capacity is 14,100 BTU/h (4.13 Kilowatts). A D200WC water-cooled configuration is available.

ULTIMATE BUNDLE
Contains all the features in the All Wine Temperatures Bundle and the Extreme Climate Protection Bundle.

ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.

This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.

EXTREME CLIMATE PROTECTION BUNDLE
Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

EASY ACCESS AND INSTALLATION
For faster service and installation, the ducted system features a multi-panel design with easy access fasteners. With just two screwdriver-turns, you easily remove or interchange the placement of panels, duct collars, grille, and optional humidifier.

DURABLE DESIGN
The panels and duct collars are constructed of the highest rated UL rated composite material, making them 5x stronger than before. They are strong enough to withstand dents and scratches during shipping and installation.

EFFICIENT INSULATION
Insulation throughout the system and double wall duct collars help reduce temperature loss and condensation even in the most demanding environments.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 208(230)/1/60

Performance
• Net Cooling Capacity Total/Sensible 208 (230)
@60 Deg F condenser inlet air (BTUH): 17570/12430 (17680/12790)
@70 Deg F condenser inlet air (BTUH): 16580/11650 (16720/12000)
@80 Deg F condenser inlet air (BTUH): 15350/11100 (15680/11780)
@90 Deg F condenser inlet air (BTUH): 14000/10580 (15000/10870)

Controls
• Type: Digital electronic
• Temperature Accuracy/RH% Accuracy: 1F / 10%

Evaporator Section 208 (230)
• Fan Motor Size (Watts): 160 (180)
• Rated Air Flow (free blow) (CFM): 760 (810)
• Rated Air Flow @ pressure loss (CFM): 710 @0.35" w.c. (745 @0.35" w.c.)

Air-cooled Condenser Section 208 (230)
• Fan Motor Size (Watts): 160 (180)
• Rated Air Flow (free blow) (CFM): 760 (810)
• Rated Air Flow @ pressure loss (CFM): 700 @0.35" w.c. (745 @0.35" w.c.)

Heat 208 (230)
• Type: Electric
• Capacity (Watt/BTUH): 1635/5582 2000/6800

Electrical Requirements 208 (230)
• Current Draw - Cooling mode (Amps): 15.6 (14.1)
• Current Draw - Heating mode (Amps): 8.8 (9.5)
• Minimum Circuit amps (heat / no heat) (Amps): 10.7/19.1 (11.7/17.2)

Cabinet
• Construction: Aluminum chassis & UL Rated plastic panels
• Finish: Gray Metal epoxy powder coat/textured PVC Acrylic blend
• Weight (lbs.): 206
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID) (in.): .50
• Minimum Ductwork Size (in.): 12
• Agency approval (ETLc): UL 1995 / CSA C22.2
