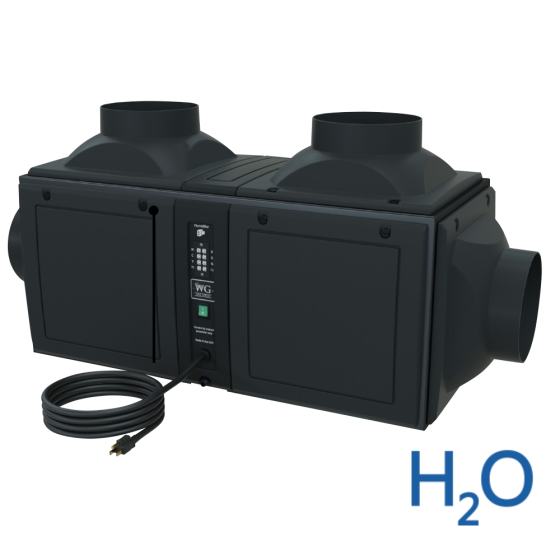

Wine Guardian® Pro Sentinel Series DP88WC Water-Cooled Ducted Wine Cellar Cooling Unit, 9,600BTUH, 208/230Vac, Single Phase, 60Hz
Item
99H0210-20
FEATURES
The DP88WC Wine Guardian Pro specialty ducted AC system is ideal for midsize to large specialty cooling storage spaces and has a max capacity of 9,600 BTU/H.
WATER-COOLED
Includes a factory-configured integral water-cooled condensing coil and water-regulating valve. This wine cellar cooling system is ideal for geothermal, cooling tower and lake water applications. The unit does not require warm condenser air connections, making it an excellent solution when warm-condenser-air venting is not possible.
ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation.
COMPREHENSIVE
Our cooling systems offer a wide range of control, so you can match our units to your specific needs. Wine Guardian Pro systems use 24-volt electronics for easy integration with your existing smart home or commercial building management system.
EFFICIENT
The Pro Ducted system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.
BOLD
A sleek and modern look to compliment any wine cellar design.
STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.
SPECIFICATIONS
• Power Requirements (volt/phase/hz): 208(230)/1/60Performance (57°/55%RH)
• Nominal Compressor (HP): 1
• Net Cooling Capacity Total/Sensible 208(230)
@60 Deg F condenser inlet air (BTUH): 10700/7120 (10830/7500)
@70 Deg F condenser inlet air (BTUH): 9900/6800 (10250/7160)
@80 Deg F condenser inlet air (BTUH): 9420/6610 (9600/6850)
@90 Deg F condenser inlet air (BTUH): 8600/6120 (8760/6210)
Performance (80°/50%RH)
• Nominal Compressor (HP): 1
• Net Cooling Capacity Total/Sensible 208(230)
@60 Deg F condenser inlet air (BTUH): 14330/9530 (14560/10000)
@70 Deg F condenser inlet air (BTUH): 13690/9400 (13860/9680)
@80 Deg F condenser inlet air (BTUH): 13000/9130 (13140/9370)
@90 Deg F condenser inlet air (BTUH): 11800/8400 (11300/8450)
Controls
• Type: 24 Volt Control - (Thermostat by Others)
Evaporator Section 208(230)
• Fan Motor Size (Watts): 175 (195)
• Rated Air Flow (free blow) (CFM): 435 (485)
• Rated Air Flow @ pressure loss (CFM): 370 @0.20" w.c. (440 @0.20”w.c.)
Condenser Section
• Water usage at 40 Deg F rise (GPM): 1.20
• Pressure drop (PSI): 0.08
• Pipe connection size (in/out) O.D. (in.): 0.50
Electrical Requirements 208(230)
• Current Draw - Cooling mode (Amps): 9.8 (8.8)
Cabinet
• Construction: Aluminum chassis & UL rated plastic panels
• Finish: Gray metal epoxy powder coat/textured PVC acrylic blend
• Weight (lbs.): 125
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85
• Condensate Drain connection (ID) (inches): .50
• Minimum Ductwork Size: 10
• Agency Approval(s): ETL UL 1995/CSA C22.2
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 125 | Exterior Dimensions (D) (inches) | 41.500000 | Exterior Dimensions (W) (inches) | 22.500000 | Exterior Dimensions (H) (inches) | 19.000000 | Shipping Weight (lbs) | 125.000000 |
Specification | |
---|---|
Maximum Capacity (BTU/H) | 9,600 | Minimum Capacity (BTU/H) | 5,000 | Model | DP88WC | Defrost Sensor | No | High Ambient Protection | No | Low Ambient Protection | No | Serving Temperature | No | Water Cooled | Yes |
