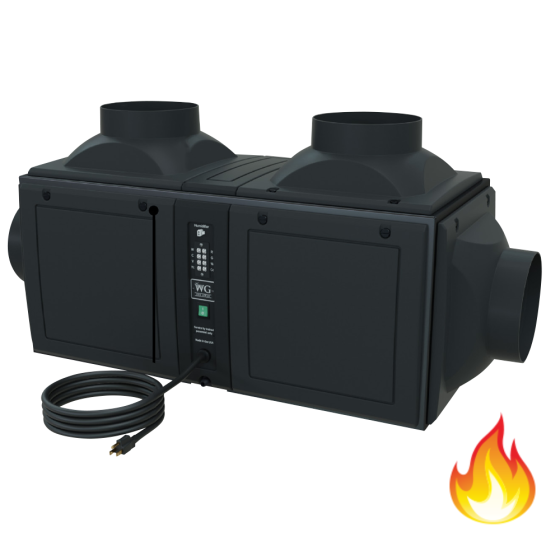

Wine Guardian® Pro Sentinel Series DP50 Ducted Wine Cellar Cooling Unit with Heater, 6,320BTUH, 115Vac, Single Phase, 60Hz

FEATURES

The DP50 Wine Guardian Pro ducted unit is ideal for small to midsize wine storage spaces and specialty HVAC applications such as server room air conditioning and art storage. The self-contained, fully ductable DP50 produces a max capacity of 6,570 BTU/H and has many standard features including low ambient protection, while electric heat is optional. The DP50 is equipped with enhanced refrigeration controls and is compatible with modern smart thermostats. Additional duct collars connections are also located on the condensing section of this cooling unit.

LOW AMBIENT
Protects the system from cold temperatures below 5°C (40°)

HEATER
Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation.

COMPREHENSIVE
Our cooling systems offer a wide range of control, so you can match our units to your specific needs. Wine Guardian Pro systems use 24-volt electronics for easy integration with your existing smart home or commercial building management system.

EFFICIENT
The Pro Ducted system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.

BOLD
A sleek and modern look to compliment any wine cellar design.

STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.

SPECIFICATIONS

• Power Requirements (volt/phase/hz): 115/1/60

Performance (57°/55%RH)
• Nominal Compressor (HP): 0.33
• Net Cooling Capacity Total/Sensible
@60 Deg F condenser inlet air (BTUH): 6920/4920
@70 Deg F condenser inlet air (BTUH): 6570/4740
@80 Deg F condenser inlet air (BTUH): 6320/4510
@90 Deg F condenser inlet air (BTUH): 5860/4230
@110 Deg F condenser inlet air (BTUH): 4865/3820
@120 Deg F condenser inlet air (BTUH): 4585/3590

Performance (80°/50%RH)
• Nominal Compressor (HP): 0.33
• Net Cooling Capacity Total/Sensible
@60 Deg F condenser inlet air (BTUH): 9830/6990
@70 Deg F condenser inlet air (BTUH): 9250/6680
@80 Deg F condenser inlet air (BTUH): 8720/6220
@90 Deg F condenser inlet air (BTUH): 7835/5800
@110 Deg F condenser inlet air (BTUH): 7140/5610
@120 Deg F condenser inlet air (BTUH): 6690/5230

Controls
• Type: 24 Volt Control - (Thermostat by Others)

Evaporator Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow) (CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Condenser Section
• Fan Motor Size (Watts): 100
• Rated Air Flow (free blow) (CFM): 390
• Rated Air Flow @ pressure loss (CFM): 320 @0.20" w.c.

Heat
• Type: Electric
• Capacity (Watt/BTUH): 1000/3400

Electrical Requirements
• Current Draw - Cooling mode (Amps): 11.3

Cabinet
• Construction: Aluminum chassis & UL rated plastic panels
• Finish: Gray metal epoxy powder coat/textured PVC acrylic blend
• Weight (lbs.): 125
• Dimensions (inches):
Width: 41.5
Depth: 22.4
Height: 18.85

• Condensate Drain connection (ID) (inches): .50
• Minimum Ductwork Size: 10
• Agency Approval(s): ETL UL 1995/CSA C22.2
