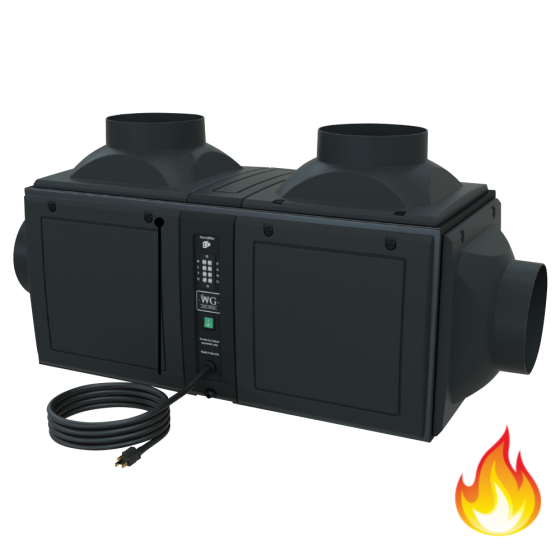

Wine Guardian® Pro Sentinel Series DP25 Ducted Wine Cellar Cooling Unit with Heater, 3,760BTUH, 115Vac, Single Phase, 60Hz

FEATURES

The DP25 Wine Guardian Pro Ducted wine conditioning unit is ideal for small commercial and residential wine storage spaces and specialty cooling applications like document storage, instrument storage, and more. The self-contained, fully ductable DP25 produces a max capacity of 3,760 BTU/H and has many standard features including low ambient protection. The DP25 is equipped with enhanced refrigeration controls and is compatible with modern smart thermostats. Additional duct collar connections are also located on the condensing section of this cooling unit.

LOW AMBIENT PROTECTION
Protects the system from cold temperatures below 5°C (40°F).

ACCESSIBLE
Composite multi-panel design with integral captive quarter-turn fasteners allows for ease of access and serviceability. Interchangeable duct collars and solid panels can be simply configured during installation.

COMPREHENSIVE
Our cooling systems offer a wide range of control, so you can match our units to your specific needs. Wine Guardian Pro systems use 24-volt electronics for easy integration with your existing smart home or commercial building management system.

EFFICIENT
The Pro Ducted system chassis features up to three times more insulation than previous versions. New stronger, double wall insulated duct collars insulate 42% more to help reduce temperature loss and condensation even in the most demanding environments.

BOLD
A sleek and modern look to compliment any wine cellar design.

STRONG
The Sentinel Series is made of the highest UL rated composite material, features an all aluminum chassis, and contains coated coils to ensure product durability. It is five times stronger than our previous model. The unit’s construction prevents dents and scratches from installation and shipping.

SPECIFICATIONS

Power Requirements (volt/phase/hz): 115/1/60

Performance (57°/55%RH)
• Nominal Compressor (HP): 0.33
• Net Cooling Capacity Total/Sensible
@60 Deg F condenser inlet air (BTUH): 4520/3050
@70 Deg F condenser inlet air (BTUH): 4300/2915
@80 Deg F condenser inlet air (BTUH): 3760/2715
@90 Deg F condenser inlet air (BTUH): 3540/2580
@110 Deg F condenser inlet air (BTUH): 3260/2400
@120 Deg F condenser inlet air (BTUH): 3000/2260

Performance (80°/50%RH)
• Nominal Compressor (HP): 0.33
• Net Cooling Capacity Total/Sensible
@60 Deg F condenser inlet air (BTUH): 5980/4000
@70 Deg F condenser inlet air (BTUH): 5570/3780
@80 Deg F condenser inlet air (BTUH): 5080/3660
@90 Deg F condenser inlet air (BTUH): 4425/3500
@110 Deg F condenser inlet air (BTUH): 4070/3000
@120 Deg F condenser inlet air (BTUH): 3780/2840

Controls
• Type: 24 Volt Control - (Thermostat by Others)

Evaporator Section
• Fan Motor Size (Watts): 75
• Rated Air Flow (free blow) (CFM): 245
• Rated Air Flow @ pressure loss (CFM): 200 @0.10" w.c.

Condenser Section
• Fan Motor Size (Watts): 75
• Rated Air Flow (free blow) (CFM): 245
• Rated Air Flow @ pressure loss (CFM): 200 @0.10" w.c.

Heat:
• Type: Electric
• Capacity (Watt/BTUH): 1000/3400

Electrical Requirements
• Current Draw - Cooling mode (Amps): 7.1

Cabinet
• Construction: Aluminum chassis & UL rated plastic panels
• Finish: Gray metal epoxy powder coat/textured PVC acrylic blend
• Weight (lbs.): 80
• Dimensions (inches):
Width: 33.45
Depth: 16.6
Height: 15.56

• Condensate Drain connection (ID) (inches): .50
• Minimum Ductwork Size: 8

• Agency Approval(s): ETL UL 1995/CSA C22.2
