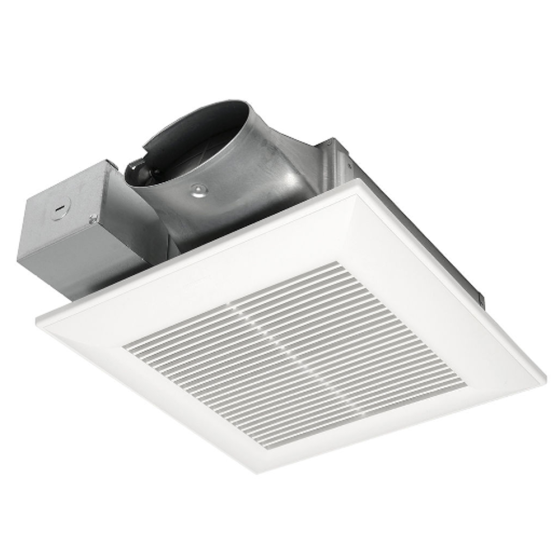

The Panasonic WhisperValue® FV-0510VSC1 ENERGY STAR® Certified Humidity Sensing Ventilation Fan helps control bathroom condensation to prevent mold and mildew. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (50-80-100 CFM).
FEATURES & BENEFITS
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output • Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM) • Built-in condensation sensor to control bathroom moisture • Low profile 3-3/8” depth fits virtually anywhere, including 2x4 construction • Elegant grille design compliments the aesthetics of any bathroom • Air Volume Exhaust (CFM): 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP • CFM: 50-70. 80-110 • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ • Construction Type: Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. • Current (Amps): 50 CFM= .08A, 80 CFM= .13A, 100 CFM= .18A • Ventilation Design Approach: Continuous Ventilation. Spot Ventilation • Duct Diameter: 4" Oval • Energy Efficiency (CFM/Watt): 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W • ENERGY STAR® Certified: Yes • Fan Type: Fan Only • Grille Size (in sq.): 13" • Motor Type (AC/DC): ECM • Mounting Opening (in sq.): 10-1/2" • Mounting Options: Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) • Noise (Sones): 50 @ 0.1" SP = 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3 • Power Consumption (Watts): 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W • Power Rating (Vac/Hz): 120/60 • Radiation Damper Available: Yes • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes • Warranty: 6 year DC Motor, 3 Year Parts
