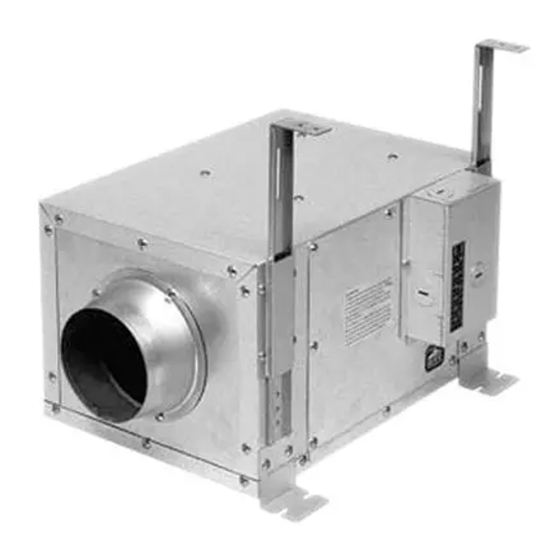

The Panasonic WhisperLine™ FV-40NLF1 Inline Ventilation Fan for single or multiple inlets. Insulated housing prevents condensation and noise; tapered 8” duct adapter provides easy connection. Features five positions for installation. Joist or truss attachment brackets and suspension brackets included. Can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• Remote mount in-line fan for single or multiple inlets • Insulated housing to prevent condensation and noise • Tapered duct adapter for easy connection • Five positions for flexible installation • Joist or truss attachment brackets included • Air Volume Exhaust (CFM): 440 @ 0.2" SP, 421 @ 0.3" SP, 407 @ 0.4" SP • CFM: 440 • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ • Current (Amps): 1.10A • Duct Diameter: 8" Round • Energy Efficiency (CFM/Watt): 3.2 CFM/W • ENERGY STAR® Certified: No • Motor Type (AC/DC): AC • Power Consumption (Watts): 440 @ 0.2" SP = 136W, 421 @ 0.3" SP = 132W, 407 @ 0.4" SP = 130W • Power Rating (Vac/Hz): 120/60 • Radiation Damper Available: No
Motor/Blower • Four–pole totally enclosed condenser motor rated for continuous run. • Power rating shall be 120 volts and 60 Hz. • Fan shall be UL listed for tub/shower enclosure when GFCI protected. • Motor equipped with thermal–cutoff fuse.
Housing • Galvanized steel body for long–life. • Insulated housing to prevent condensation and noise. • Tapered duct adapter for easy connection.
