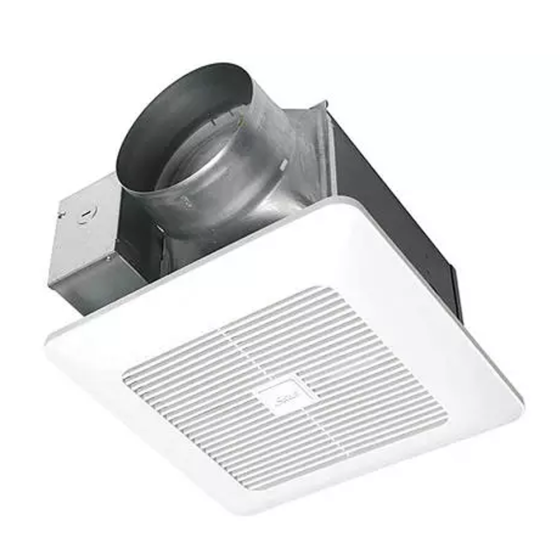

Panasonic WhisperGreen® Select™ ENERGY STAR® Certified Ventilation Fan 6 in. Round Duct, 110 to 150CFM, 0.3 Sones, 120Vac (Multi-Speed)

Item
FV-11-15VK2
  • California Prop 65

APPLICATIONS

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible and easy installation. Other enhancements include a new elegant grille, an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

FEATURES & BENEFITS

• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
• Pick-A-Flow Airflow Selector (110-130-150 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
• Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy installation
• Elegant grille design complements the aesthetics of any room
• Advanced Features: Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology
• Air Volume Supply (CFM): @0.1= 110, 130, 150 @0.25= 112, 130, 151 @0.375= 105, 124, 132
• Noise (Sones): @0.1"SP (110, 130, 150 CFM) = 0.3 @0.25"SP(112,130,151 CFM) = 0.3, 0.4, 0.7
• Power Consumption (Watts): 110 CFM=6.9, 130=9.2, 150=12.9
• Energy Efficiency (CFM/Watt): 110 CFM=16.0, 130=14.2, 150=11.7
• Current (Amps): 110 CFM=0.08, 130=0.10, 150=0.14
• Power Rating (Vac/Hz): 120/60
• Motor Type (AC/DC): DC (ECM)
• ENERGY STAR® Certified: Yes
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24,
• Duct Diameter: 6 inch Round
• Mounting Options: Horizontal
• Radiation Damper Available: Yes, PC-RD05C5
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes

Motor/Blower
• Enclosed brushless ECM smart motor technology rated for continuous operation
• Adjustable ventilation rates at 110 – 130 – 150 CFM
• Power rating of 120 volts and 60 Hz
• UL and cUL listed for tub/shower enclosure when GFCI protected
• Motor equipped with thermal cutoff fuse
• Removable permanently lubricated plug-in motor

Housing
• Environmentally friendly 26 gauge housing using Zinc-Aluminum-Magnesium (ZAM) coating
• Integrated 6" diameter duct adapter
• Built-in damper reduces back draft and helps with blower door testing
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
• Suitable for installation in ceilings insulated up to R60
• Articulating and expandable installation bracket up to 24"

Grille
• Attractive design using Poly Pro material
• Attaches directly to housing with torsion springs
• Includes a motion sensor cap for use as a cover when the motion sensor Plug ’n Play™ module has not been selected

Warranty

• ECM Motor: 6 Years from original purchase date
• ALL Parts: 3 Years from original purchase date

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 12
Exterior Dimensions (D) (inches) 17.000000
Exterior Dimensions (W) (inches) 15.000000
Exterior Dimensions (H) (inches) 12.000000
Shipping Weight (lbs) 12.000000
Specification
CFM 150
