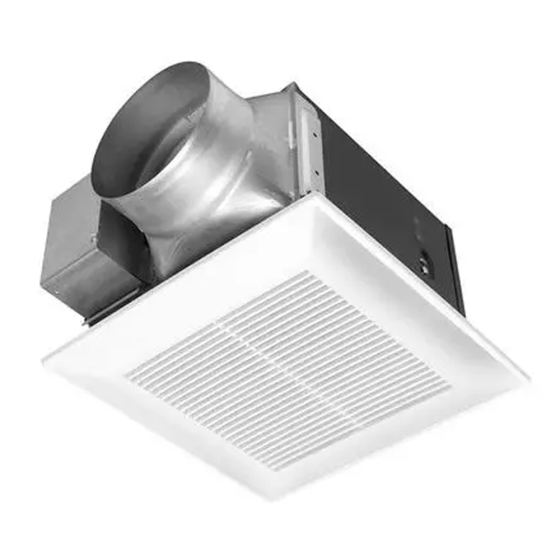

The Panasonic WhisperCeiling™ FV-40VQ4 Spot Ventilation Fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• Quiet, yet powerful – ideal for new and remodel residential applications • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing • UL listed for tub/shower enclosure when GFCI protected • 3 year warranty on parts, 3 year on CFL lamps • Air Volume Exhaust (CFM): 390 @ 0.1" SP, 356 @ 0.25" SP • CFM: 390 • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ • Current (Amps): 0.99A • Duct Diameter: 6" Round • Energy Efficiency (CFM/Watt): 3.5 CFM/W, • ENERGY STAR® Certified: No • Grille Size (in sq.): 17-11/16" • Motor Type (AC/DC): AC • Mounting Opening (in sq.): 14-3/4" • Mounting Options: Ceiling Mount. Tub Shower (UL) • Noise (Sones): 390 @ 0.1" SP = 3.0, 356 @ 0.25" SP = 3.0 • Power Consumption (Watts): 111.4W • Power Rating (Vac/Hz): 120/60 • Radiation Damper Available: No • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
Motor/Blower • Four–pole fully enclosed condenser motor rated for continuous run. • Power rating shall be 120 volts and 60 Hz. • Fan shall be UL listed for tub/shower enclosure when GFCI protected and used in insulated ceiling (TYPE I.C.). • Motor equipped with thermal–cutoff fuse. • Removable with permanently lubricated plug–in motor.
Housing • Rust proof paint, galvanized steel body. • 6" diameter duct adapter. • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in the leakage in the Building Envelope during blower door testing. • Built in backdraft damper. • Double hanger bar system allowing for ideal positioning. • Expandable extension bracket up to 26".
Grille • Attractive design using Poly Pro material. • Attaches directly to housing with torsion springs.
Warranty • ALL Parts: 3 years from original purchase date.
