Wet Diff Press Transducer

APPLICATIONS

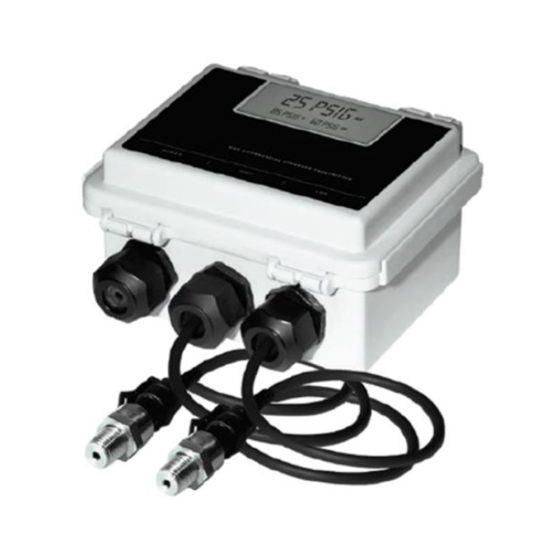

The Carrier WPR2 Series Remote Wet to Wet Differential Pressure Transmitter is designed to reduce installation time and provide mounting flexibility, often eliminating the need for additional plumbing. They accurately measure wet media pressures in a variety of applications. Commonly used for monitoring pumps, these devices are also ideal for measuring pressure across filters, heat exchangers and compressors. The dual remote sensors are based on a ceramic capacitive sensing element with ¼”-18 NPT male (304 stainless steel) fittings. The WPR2’s enclosure opens conveniently to allow it to be reconfigured between three additional ranges (see Specifications) and outputs of 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC (default). The different configurations in this series can measure both uni or bi-directional pressure ranges as low as 3 psi and as high as 300 psi, depending on the unit. The WPR2 also features a push button auto zero function for remote calibration. The LCD option will display pressure values for both the High and Low side pressures, a differential pressure value, “OVR” for values over the specified range, “ERROR” for differential pressures out of range, and “ZERO” when the auto-zero is in process.

FEATURES & BENEFITS

• Supply Voltage: 4 to 20 mA Output: 250Ω Load: 18 to 36 VDC | 500Ω Load: 20 to 36 VDC 0 to 5 / 0 to 10 VDC Output: 16 to 36 VDC, 21.6 to 26.4 VAC, 50/60 Hz
• Supply Current: 4-20 mA Output: 24 mA minimum; 0-5 VDC | 0-10 VDC Outputs: 6 mA maximum
• Output Signals: 2-wire: Linear 4-20 mA DC Current (Field Selectable) 3-wire: 0-5 VDC; 0-10 VDC (Default)
• Response Time (0-100% FSO): 8 seconds
• Output Update Rate: 1 second
• Output Load Resistance: 4 to 20 mA: 500 ohms maximum | 0-5 VDC/0-10 VDC: 5K ohms minimum
• Field Selectable Ranges: Uni-Directional: 0-300, 0-150, 0-75 and 0-30 psid | Bi-Directional: +/-300,+/-150, +/-75 and +/-30
• Warm Up Time: 15 minutes (wait 15 minutes before zeroing)
• Accuracy (Three Highest Ranges): ±1.0% FSO
• Accuracy (Lowest Range): ±1.5% FSO
• Thermal Effects: ±2.0% FSO from 32-140°F (0-60°C)
• Operating Temperature: Transducer: -40 to 257ºF (-40 to 125ºC) Electronics/Housing/Cables: 32-167°F (0-75°C)
• Compensated Temperature Range: 32 to 140°F (0 to 60°C)
• Storage Temperature: -13 to 176ºF (-25 to 80ºC)
• Operating Humidity: 10 to 90% RH non-condensing
• Proof Pressure: 2X FS
• Burst Pressure: 1500 psi
• Media Types: Any liquids or gases compatible with Neoprene seal
• Process Fitting Material: 304 SS
• Process Fitting Size: 1/4"-18 NPT Male; Pressure Snubber included for light oils/water (NSA-WPR2-30/NSA-WPR2-100 Models)
• Recommend Torque Specification: 150 lbs-in (16.95 Nm)
• Transducer Cable Rating | Connector Type: Type CMP – Plenum Rated (UL Standard 444), NEC Article 800 | Packard Connector
• Enclosure Material | Flammability Rating: Flame Retardant PC | PBT Alloy | UL94V-0
• Enclosure Rating: NEMA 4X/IP66
• Approvals: CE, RoHS2, WEEE, Reach
• Product Dimensions (L x W x D): 5.30” x 5.07” x 3.00” (13.46 cm x 12.88 cm x 7.62 cm)
• Product Weights: 2.2 lbs (0.998 kg)
