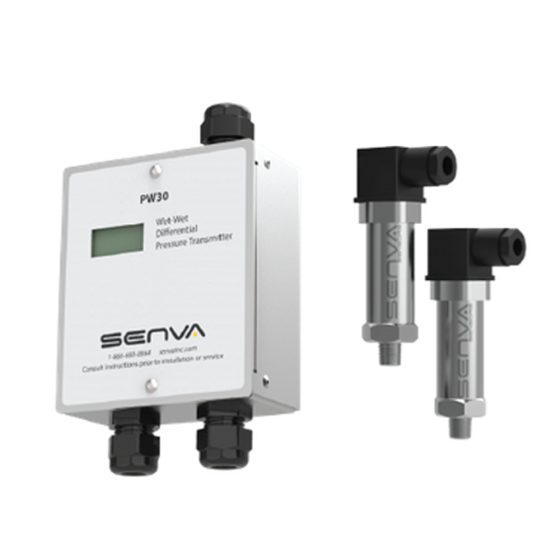

Wet Diff Press Transducer W/ Conduit Pressure Pickups (100PSI Max)

APPLICATIONS

• Demand measurement in HVAC systems for pump speed control and local indication
• Process control systems
• Flow measurement of gases, vapors, and liquids compatible with 316L SS
• Filter status monitoring
• System leak detection
• Great for data center wet pressure sensing

FEATURES

The PW30 Series uses remote sensors to eliminate the need for costly bypass assemblies, enabling fast, cost effective installation. The remote sensors mount directly to pipe to eliminate bleeding and additional plumbing. Optional factory pre-wired harnesses also available in wire and armored cable versions. NEW! Order pre-fabricated with a 3 or 5-valve bypass assembly for easy bleeding and installation where bypass is required. Standard LCD screen and dip switches make configuration a breeze. Measure 16 differential pressure ranges from 1-500 PSID with a single device without sacrificing accuracy. Selectable output 0-5V, 0-10V, or 2 Wire 4-20mA.

• Drastically reduce plumbing needs and save installation time
• Order with pre-fabricated wire or pre-fabricated bypass assembly
• Single device for 1-500 PSID makes ordering easy
• Swap or replace remote sensors with ease
• LCD and dip switches make configuration fast and simple
• Remote sensors come standard with DIN43650 connection for easy plug-and-play, no wire twisting
• MEMS sensor technology
• Integrated surge snubber protects sensor from water hammer for reliable long term performance
• Manual and remote zero for maintained accuracy
• Port swap corrects plumbing errors
• Uni/bi directional
• Conduit and wire connection compatible
