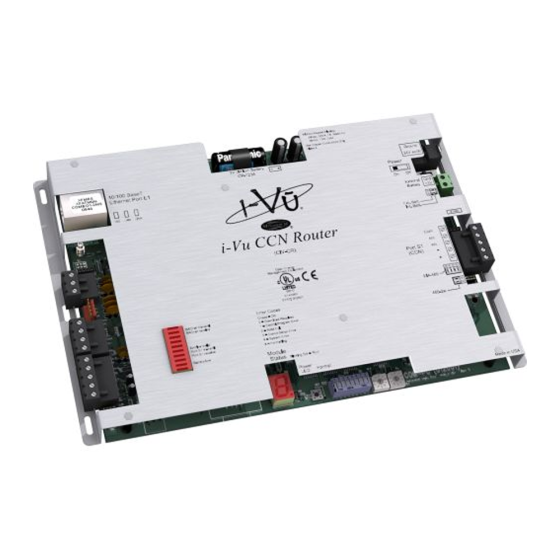

i-Vu® Building Automation System i-Vu® CCN Router

Item
CIV-CR
  • California Prop 65

OVERVIEW

Network & Integration Device

Network device used to connect Ethernet-based Local Area Network (LAN) to the Carrier Comfort Network® (CCN).

The i-Vu CCN Router provides scalability for larger Carrier systems. It connects an Ethernet-based Local Area Network (LAN) to the Carrier Comfort Network (CCN™). Because the i-Vu CCN Router allows for the use of existing LAN wiring, it is an ideal solution for integrating CCN into any building or facility. The i-Vu CCN Router has one EIA-485 port for connecting to the CCN bus, and one 10/100 Base-T Ethernet port for connecting to the building LAN. Each i-Vu CCN Router can connect to up to 140 CCN devices. The i-Vu CCN Router also stores trend data and time schedules for the CCN devices that are connected to it.

FEATURES

FEATURES & BENEFITS

Functions

The i-Vu CCN Router functions in one of the following modes, depending on configuration:

  • Gateway - Provides access to the CCN bus from an i-Vu web server that resides on the Ethernet. The Router is serving as the access node from the Ethernet to the CCN and is responsible for maintaining a routing table of CCN system elements.
  • Bridge - Acts as a CCN/Ethernet interface device in applications where the Ethernet is being used to connect separate CCN buses. This application requires an additional Router functioning as a Gateway.

SPECIFICATIONS

Communication Ports Port E1:10/100 BaseT Ethernet port for LAN and BACnet IP communications
Port S1 (CCN): EIA-485 port for CCN Network and/or CCN Service Tool connection (9600 bps & 38.4 kbps)
Protection Incoming power and network connections are protected by non-replaceable internal solidstate polyswitches that reset themselves when the condition that causes a fault returns to normal. The power, network, input, and output connections are also protected against voltage transient and surge events.
Real Time Clock Battery-backed real time clock
Battery 10-year Lithium CR123A battery provides a maximum of 720 hours of time retention during power outages. To conserve battery life, battery backup turns off after a specified number of days defined in the module driver.
Status Indicators LED status indicators for BACnet MS/TP communication, Ethernet port communication, and low battery status. 7-segment status display for running, error and power status.
Controller Addressing Rotary DIP switches set address of Router.
Listed By UL-916 (Canadian Std C22.2 No. 205-M1983), CE, FCC Part 15-Subpart B-Class A
Environmental Operating Range Operating: 0° to 140°F (-18° to 60°C), 10-90% relative humidity, non-condensing
Storage: -24°F to 140°F (-30° to 60°C), 10-90% relative humidity, non-condensing
Power Requirements 24VAC +/- 10%, 50-60Hz
24VA power consumption
26VDC (25V min, 30V max)
Single Class 2 source only, 100VA or less
Physical Rugged aluminum cover and removable screw terminal blocks.

California residents please see Proposition 65

Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 1.4
Exterior Dimensions (D) (inches) 1.500000
Exterior Dimensions (W) (inches) 11.325000
Exterior Dimensions (H) (inches) 7.500000
Shipping Weight (lbs) 1.400000
