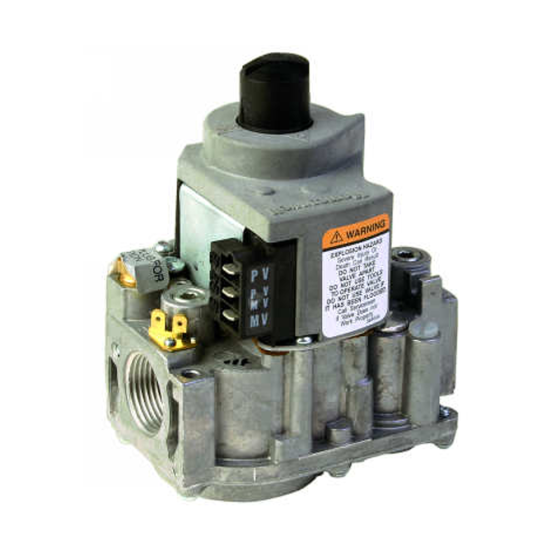

Honeywell® Universal Intermittent / Direct Ignition Gas Valve 3/4" x 3/4" - 24Vac - 200cfh

PRODUCT DETAILS

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).

FEATURES & BENEFITS

• Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
• Replaces many IP, HSI, or DSI gas control.
• For use with natural or manufactured gas or LP gas.
• Includes converter kit to adapt from natural to LP gas.
• Compact size.
• All adjustments and wiring connections accessible from top of control.
• Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.
• Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
• Internal inlet screen blocks contaminants in gas line from entering valve.
• Application: Single Stage
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• Approvals: CSA International: 112395, UL Component Recognized MCCZ2.MH5323
• Electrical Connections: 1/4 in. quick-connect male terminals
• Voltage: 24 Vac 50/60hz
• Operating Temperature Range: -40°F to +175°F (-40°C to 79°C)
• Body Pattern: Straight-through
• Opening Characteristics: Standard Opening
• Pressure Ratings (psi): 1/2 psi
• Pressure Ratings (kPa): 3.5 kPa
• Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
• Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
• Pressure Tapping: 1/8 in. NPT with plug
• Type of Fuel: Natural (LP with included conversion kit)
• Capacity (kBtuh): At 1 in. wc p.d.-- 300,000 BTUh: 30,000 BTUh minimum: 415,000 BTUh maximum Natural Gas
• Pressure Regulator: Standard
• Pressure Regulator Setpoint (in. wc): 3.5 in. wc
• Pressure Regulator Setpoint (kPa): 0.87 kPa
• Ignition Type: Direct Ignition; Intermittent Pilot

INCLUDES

• Two 3/4 x 1/2 in. reducer bushings
• Natural to LP Conversion Kit
