FEATURES

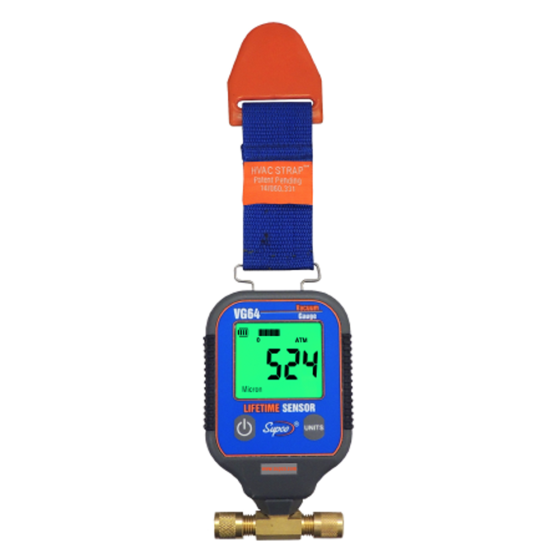

• Dual Port, High Resolution, FAST Response Digital Vacuum Gauge with Convenient built-in Hanger.• Auto shut-off
• Cleaning port provides quick cleaning and drying of sensor
• Convenient built-in hanger
• Display Updates every 1/2 second
• Easy to clean sensor (use isopropyl alcohol)
• Low battery indicator
• Reads Vacuum in Seven International Units
• Ultra Fine Resolution( 1 Micron when vacuum is less than or equal to 200 microns)
• Sensor type: Thermistor
• Connector type: Standard 1/4" male flared fitting
• Vacuum range: 0-19,000 microns
• Parameter scale: Microns, PSI, mBars, Pascals, Torr, mTorr
• Best resolution: 1 micron(for 0-200 microns)
• Operating temperature range: 32°F to 150°F (0°C to 65°C)
• Overpressure: 800 psi max
• Accuracy: +/- 10% (100-2000 microns)
• Power source: 3 AA battery (Not included)
• Fitting: 1/4" SAE Flare Fitting , 45° thread
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.45 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 1.250000 | Exterior Dimensions (H) (inches) | 1.250000 | Shipping Weight (lbs) | 0.500000 |
