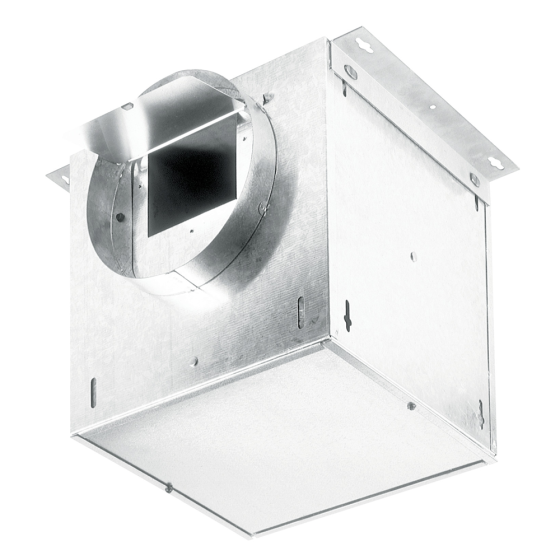

The Broan® Losone Select™ L250L High-Capacity Ventilation Fan is an exceptionally quiet solution to continuous ventilation. With its heavy-duty motor, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, it works quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
FEATURES & BENEFITS
• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation • Duct horizontally, vertically, or Inline with a separate adapter • Suitable for use in the Kitchen • UL Listed and cUL listed for your safety and protection • AMCA licensed for air and sound performance • Single, impact-resistant centrifugal blower wheel • Heavy-gauge galvanized steel housing resists corrosion • CFM (@ 0.125 SP): 245 • Duct Size: 8" Round • ENERGY STAR® certified: No • Housing Dimensions: 12-1/4" X 12-1/4" X 11-3/4" • Sound Level (Sones): 2.3 • UL Listed: Yes • Humidity Sensing: No • Motion Sensing: No • Motor Engineered for Continuous Operation: Yes • Night Light: No • Radiation Damper Available: No • Room Side Installation: No • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No • Rated Amps: 2.1 • Voltage: 120 • Can Be Used to Comply with Title 24: No • Manufacturer Warranty: 1 Year • High Efficiency Luminaire: No
BLOWER: • Low RPM for quiet operation • Resilient anti-vibration mounts • Dynamically-balanced, polymeric, centrifugal blower wheel for quiet, efficient performance • Permanently lubricated, thermally protected motor • Plug-in motor rated at 120 VAC • Designed for continuous operation
HOUSING: • Rugged galvanized steel • 8” round duct connectors • May be installed in ceiling or wall (size permitting) • 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements • Automatic backdraft damper located within duct connector • Factory-shipped in horizontal discharge position - easily converted to vertical discharge • Removable panel allows for easy motor access without disturbing ductwork • Suitable for kitchen installations
CONTROLS (sold separately): • Model 57V (Ivory) / 57W (White) 3 amp Electronic Variable Speed Control • Model 59V (Ivory) / 59W (White) 60-Minute Time Control • Model 61V (Ivory) / 61W (White) 15-Minute Time Control • Model 71V (Ivory) / 71W (White) 12-Hour Time Control • Model 72V (Ivory) / 72W (White) 6-Amp Electronic Variable Speed Control • Model 80L Electronic Speed Control (Internal)
